Waterproof:
1.Imported silicon rubber material is adopted for waterproof gasket.;
2.Ingress protection IP66.
Configuration:
1.According to the LED heat dissipation performance, the heating is conducted quickly through the luminaire structure to guarantee the LED luminous efficiency and life span;
2.Small and delicacy, easy to hide and invisible;
3.Die-cast aluminum housing,silver gray powder paint with high corrosion resistance ;
4.Adopted rubber cable which is abided by the GB7000.1 - 2015 5.2 requirement for outdoor application. the rubber cable is much more durable than PVC using at outdoor application. PVC is fragile easily when used at outdoor;
5.Welding procedure: the flat rubber cable is welded solidly to the PC board of LED luminaire, which is to solve the problems created by using pin pressure-fit procedure, such as pin oxidized and loosing contact etc.
Installation: Fixed by the screws, easy for installation.
Control: 16.7 million lighting effects of RGB color changing, achieve synchronization, chasing, flowing light effects, DMX512 compatible.

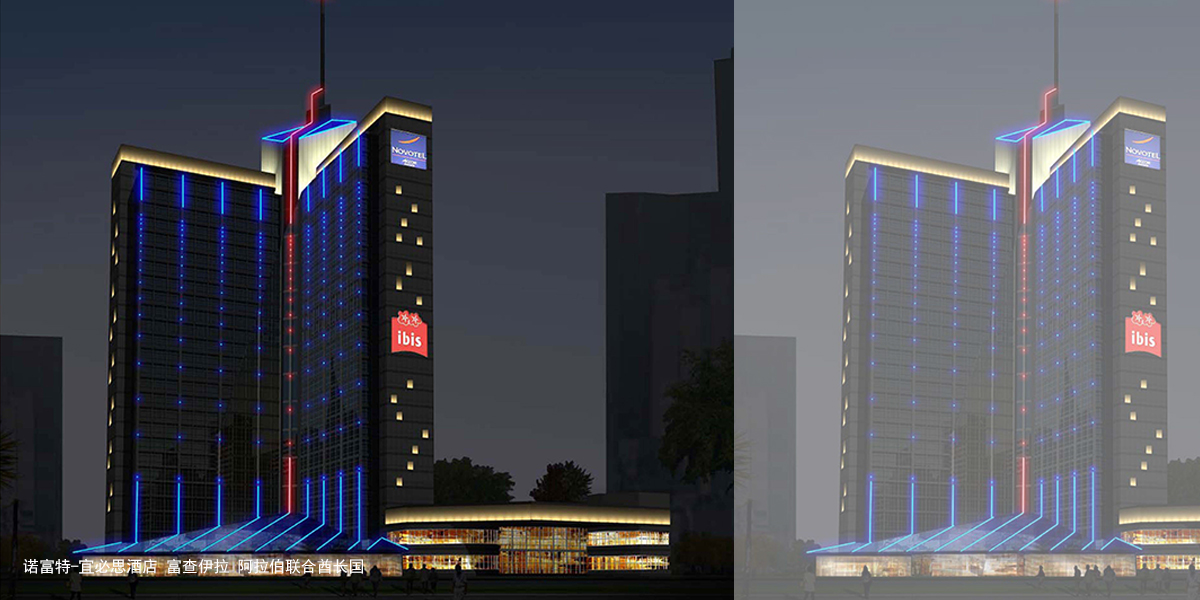

Application: Suitable for outline lighting of urban building and bridge railing.
Luminaires shape | Round |
---|---|
Glass material | crystal、frosted |
LED quantity | 6 |
LED color (single color) | Red、Green、Blue、Amber、5000k(WH)、4000k(WN)、2708-2735K、3011-3075K、3 in 1 red green blue (RGB) |
Power input | 24V DC |
Control | DMX512 high-power |
Installation | Bottom installation |
Cables outlet | |
Electricity Way | 直流 |
Way of connecting wires | Parallel power cable,no waterproof connector、Series power cable,no waterproof connector |
Specification of LED | 350mA、500mA、700mA、850mA |
Lamp length | * |
LED Type | OSRAM1 |
