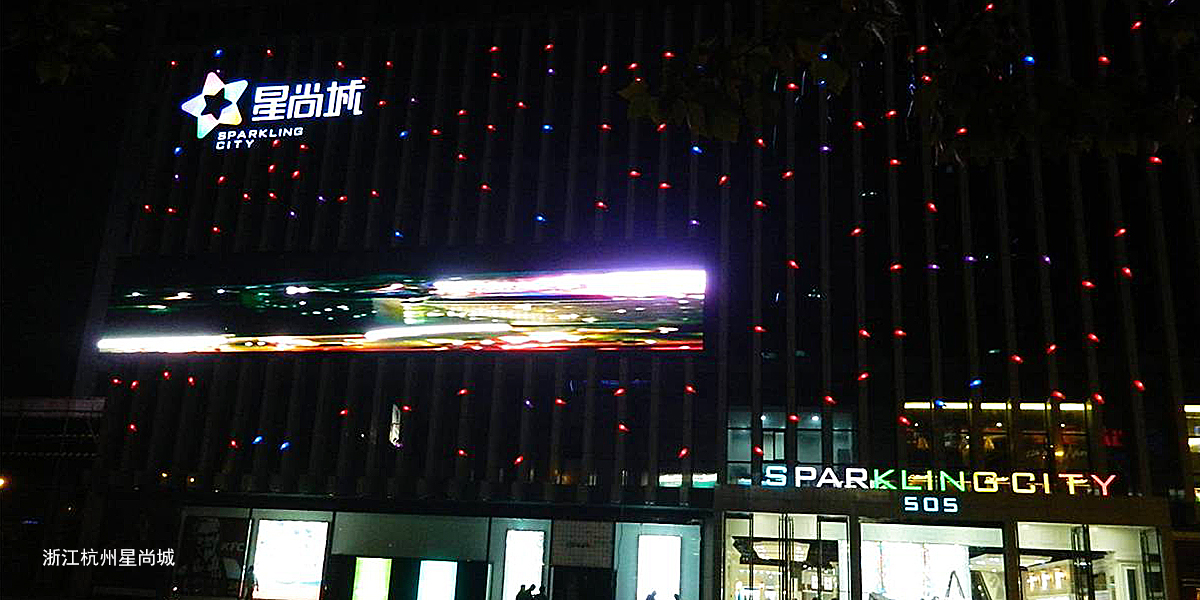

Application effect

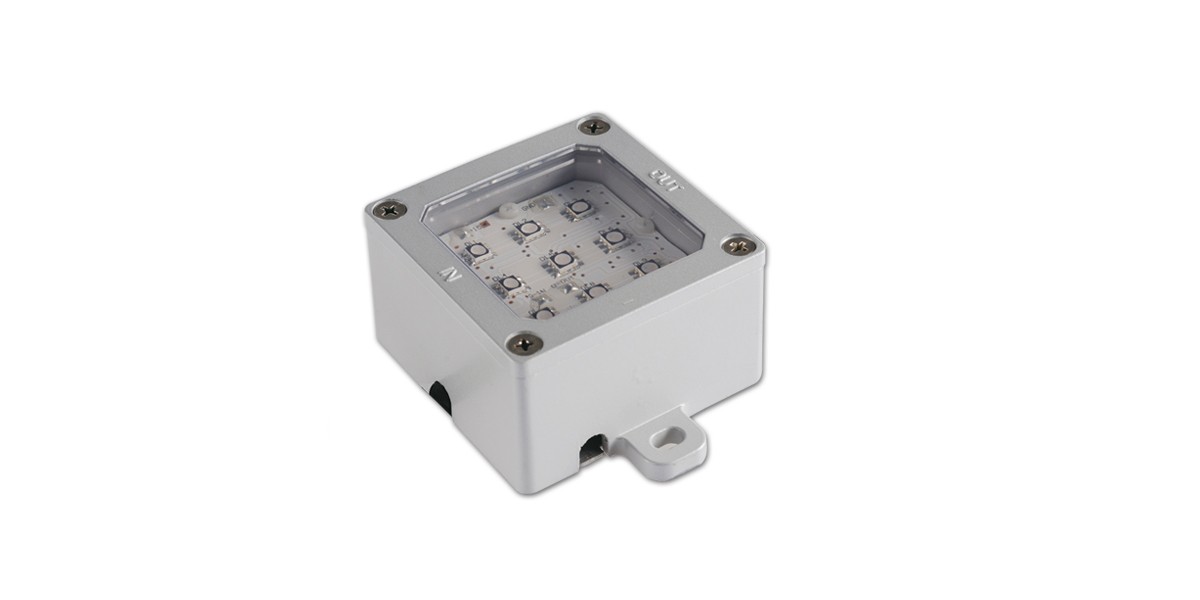

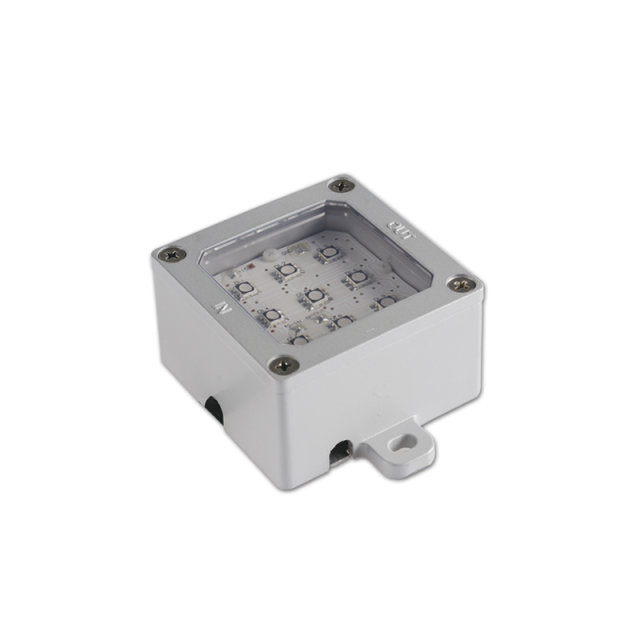

Square contour C2032S

Waterproof:

1.Imported silicon rubber material is adopted for waterproof gasket,the module circuit is closed of the whole light body by silica gel.

2.Ingress protection IP66.

Configuration:

1.Small and delicacy,easy to hide and invisible;

2.Die-cast aluminum housing,silver gray powder paint with high corrosion resistance ;

3.Clear diffusor adopted imported high transmittance PC material, with anti-UV& anti-aging resistance, to create luminous uniformity and soft effect;

4.According to the GB7000.1 -2015 5.2 requirements of outdoor luminaire, waterproof connector (Nickel-plated brass) is a must to be adopted to fix power cable. anti-pull up and does not easy to loose;

5.Adopted rubber cable which is abided by the GB7000.1-2015 5.2 requirement for outdoor application. the rubber cable is much more durable than PVC using at outdoor application. PVC is fragile easily when used at outdoor.

Installation: Fixed by the screws, easy for installation.

Application:Suitable for decorative lighting such as square, landscape, facade building, large building, theme park and entertainment areas etc

Luminaires shapeSquare
Glass materialsmooth
LED quantity9、10
LED color (single color)5000k(WH)、4000k(WN)、2708-2735K、3011-3075K、3 in 1 red green blue (RGB)
Power input15mA、24V DC
ControlDMX low-power update
Installation
Cables outlet
Electricity Way直流
Way of connecting wiresParallel power cable,no waterproof connector、Series power cable,no waterproof connector
Specification of LED2835、20mA
Lamp length*
LED TypeOSRAM3
