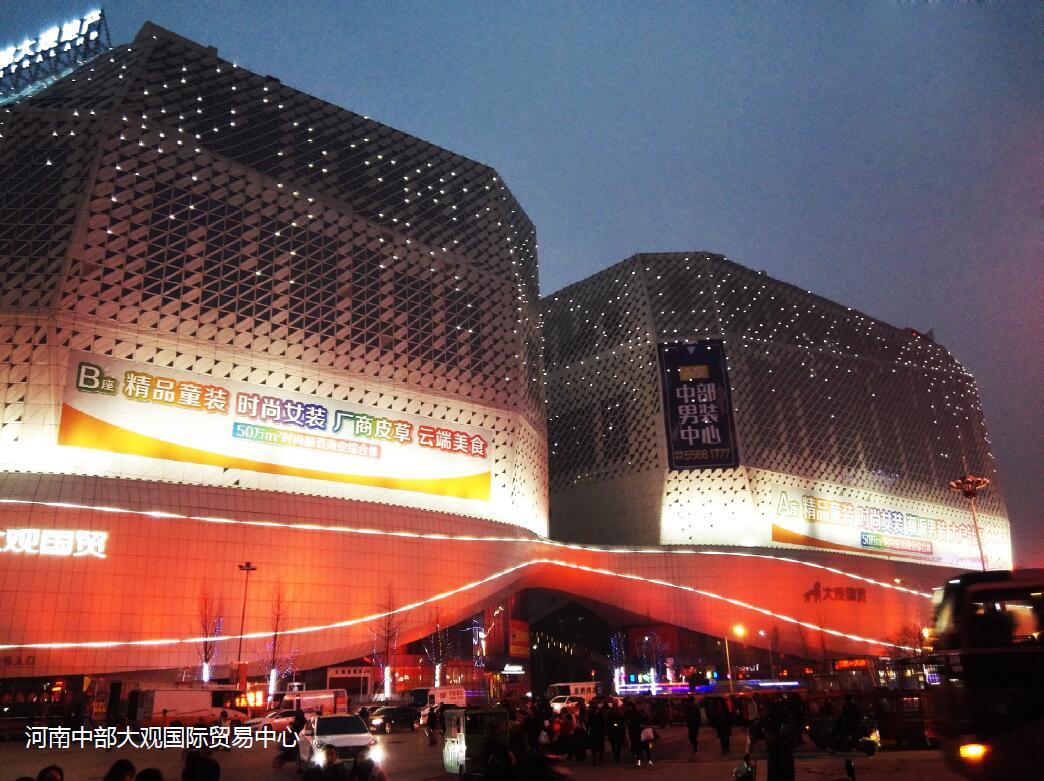

Application effect

Round contour C1052S-F/D

Waterproof:

1.Imported silicon rubber material is adopted for waterproof gasket,the module circuit is closed of the whole light body by silica gel;

2.Ingress protection IP66.

Configuration:

1.Small and delicacy,easy to hide and invisible;

2.Die-cast aluminum housing,silver gray powder paint with high corrosion resistance ;

3.Adopted rubber cable which is abided by the GB7000.1 - 2015 5.2 requirement for outdoor application. the rubber cable is much more durable than PVC using at outdoor application. PVC is fragile easily when used at outdoor;

4.Welding procedure: the flat rubber cable is welded solidly to the PC board of LED luminaire, which is to solve the problems created by using pin pressure-fit procedure, such as pin oxidized and loosing contact etc.

Installation: Fixed by the screws, easy for installation.

Control:16.7 million lighting effects of RGB color changing, achieve synchronization, chasing, flowing light effects, DMX512 compatible.

Application:Suitable for decorative lighting such as square, landscape, facade building, large building, theme park and entertainment areas etc.

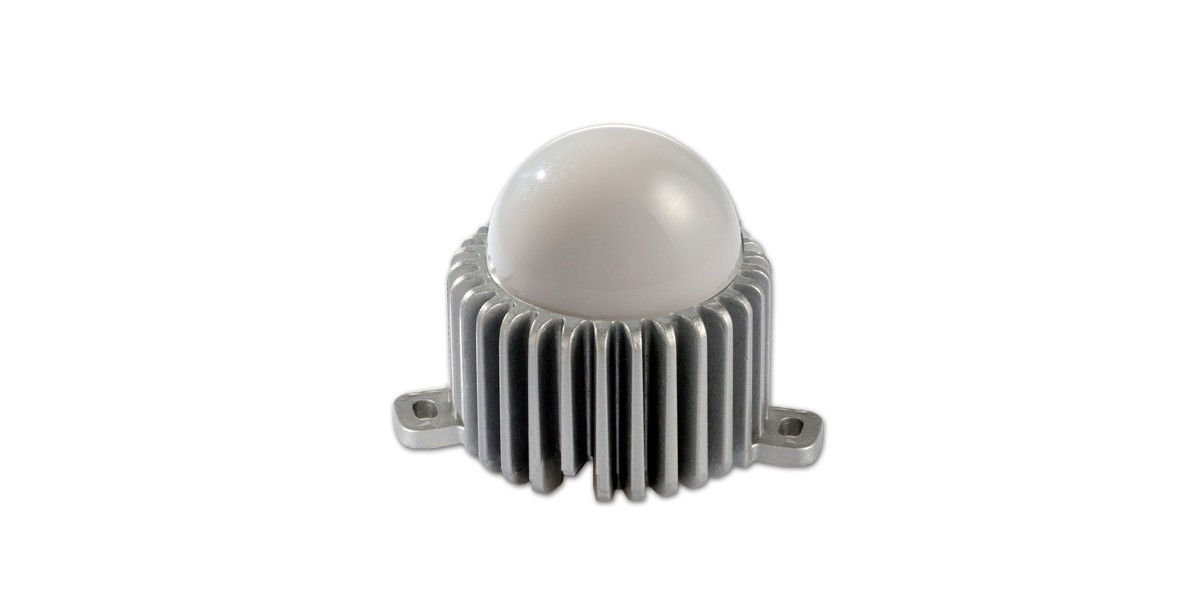

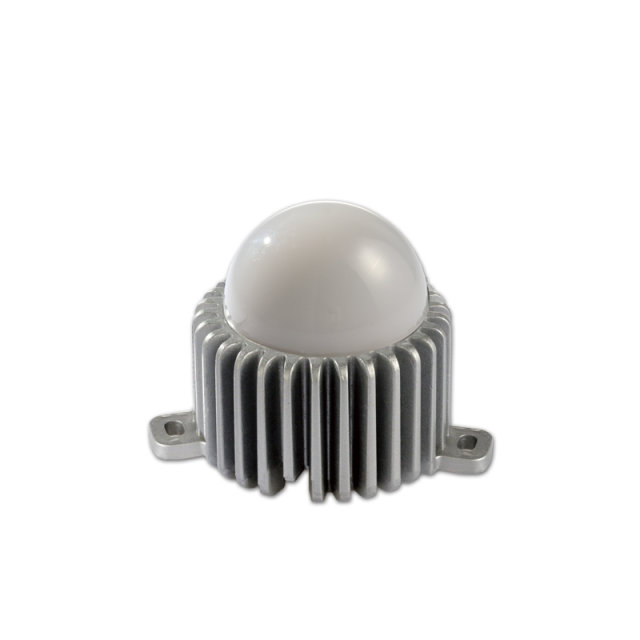

Luminaires shapeRound

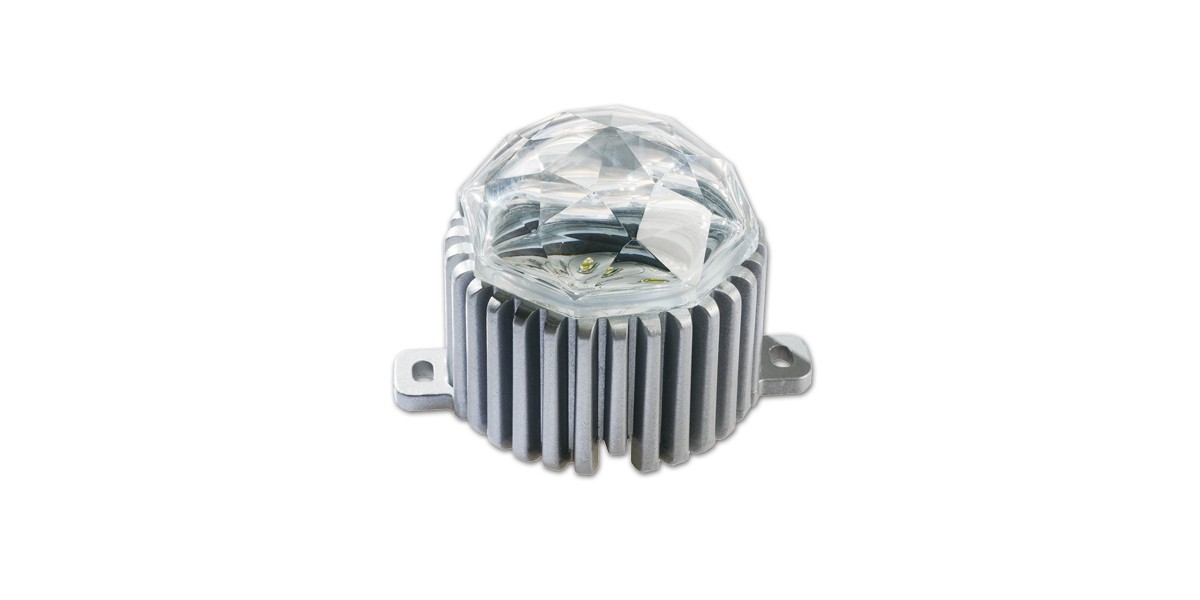

Glass materialcrystal、frosted
LED quantity5
LED color (single color)3 in 1 red green blue (RGB)、5000k(WH)、4000k(WN)、2708-2735K、3011-3075K
Power input24V DC
ControlDMX low-power update
Installation
Cables outlet
Electricity Way直流
Way of connecting wiresSeries power cable,no waterproof connector、Parallel power cable,no waterproof connector
Specification of LED20mA、2835
Lamp length*
LED TypeOSRAM3
