Waterproof:
1.Imported silicon rubber material is adopted for waterproof gasket;
2.Ingress protection IP66.
Configuration:
1.According to the LED heat dissipation performance, the heating is conducted quickly through the luminaire structure to guarantee the LED luminous efficiency and life span;
2.Small and delicacy,easy to hide and invisible;
3.6063 aluminum body,anode dioxide finish with high corrosion resistance ;
4.Stainless steel 304 mounting plate, it is safe and reliable;
5.Welding procedure: the flat rubber cable is welded solidly to the PC board of LED light, which is to solve the problems completely by using pin pressure-fit procedure, such as pin oxidized and loosing contact etc.
Installation: Fixed by the screws, easy for installation.

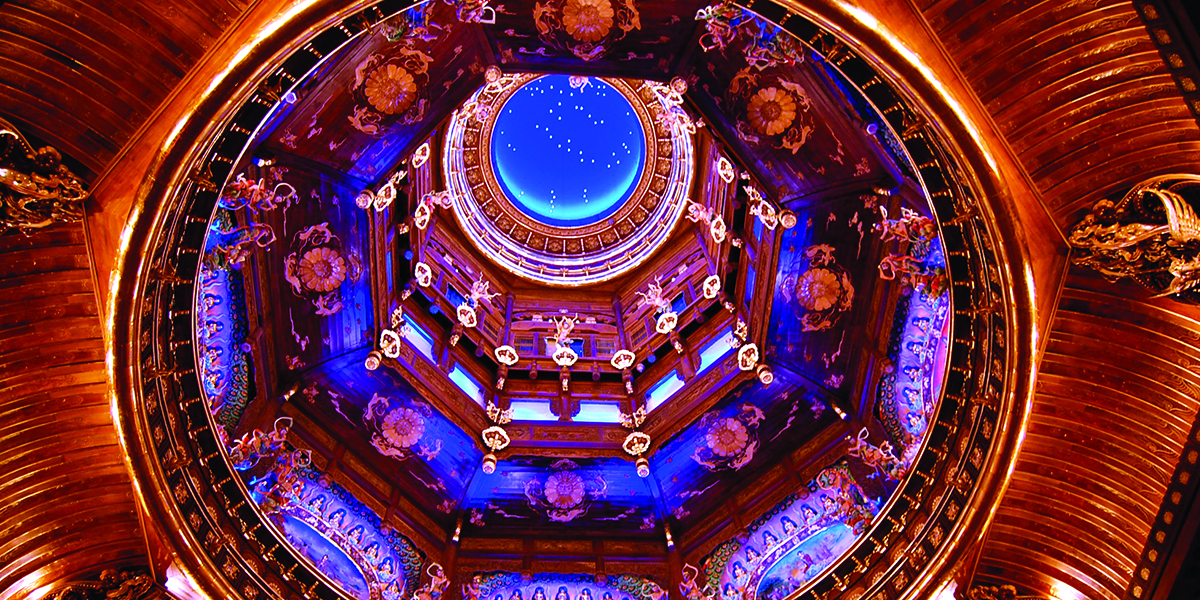

Application: Suitable for decorative lighting such as square, landscape, facade building, large building, theme park and entertainment areas etc.
| Luminaires shape | Round |
|---|---|
| Glass material | smooth、crystal、frosted |
| LED quantity | 1 |
| LED color (single color) | Red、Green、Blue、Amber、5000k(WH)、4000k(WN)、2708-2735K、3011-3075K |
| Power input | 350mA |
| Control | |
| Installation | |
| Cables outlet | |
| Electricity Way | |
| Way of connecting wires | Parallel power cable,no waterproof connector |
| Specification of LED | 350mA、500mA、700mA、1000mA |
| Lamp length | * |
| LED Type | OSRAM1 |
