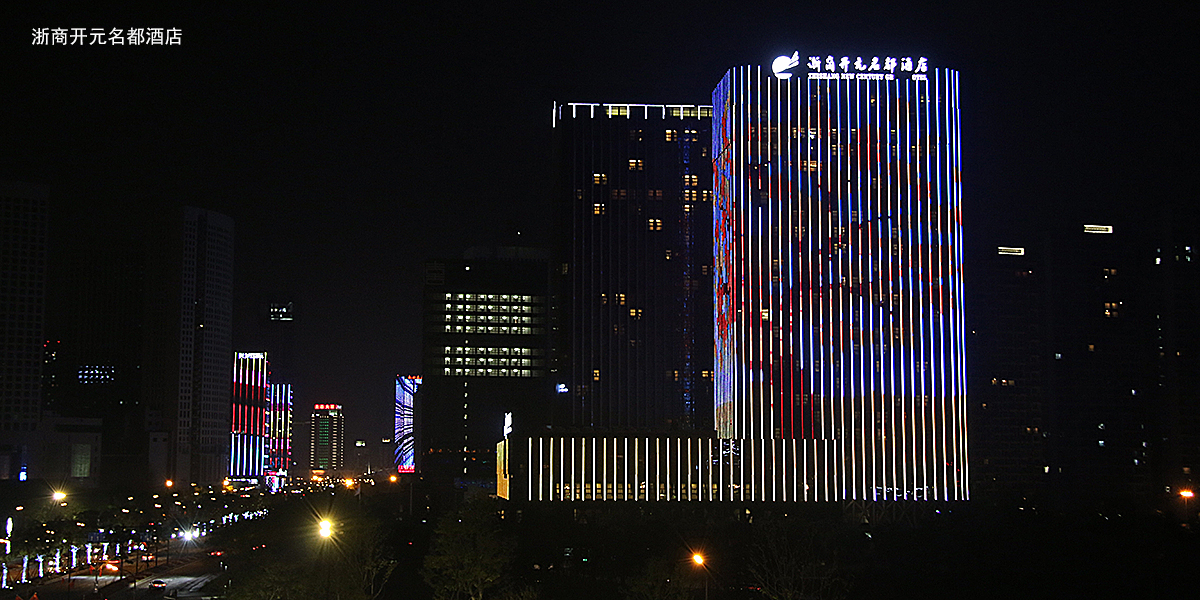

Application effect

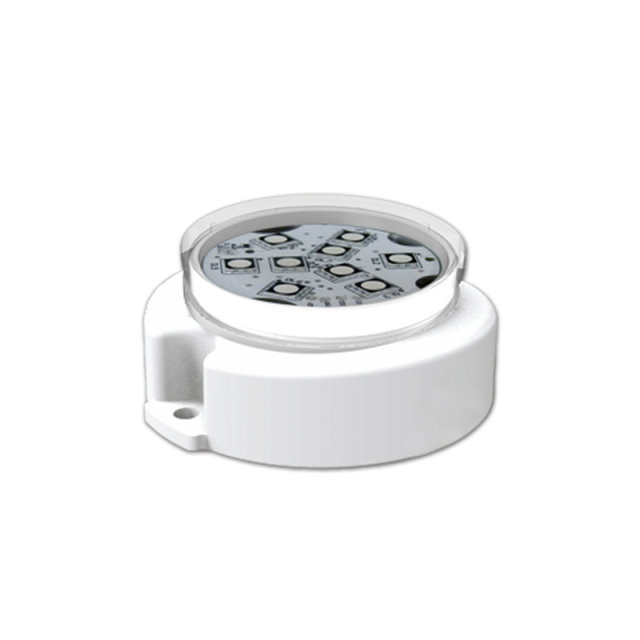

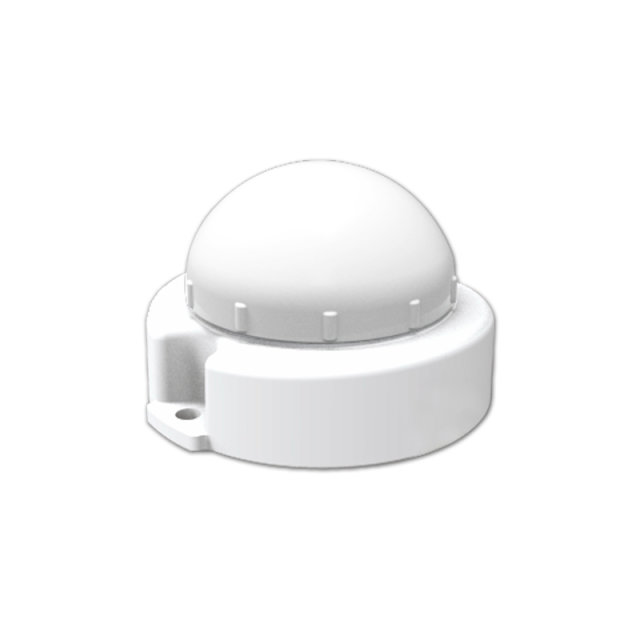

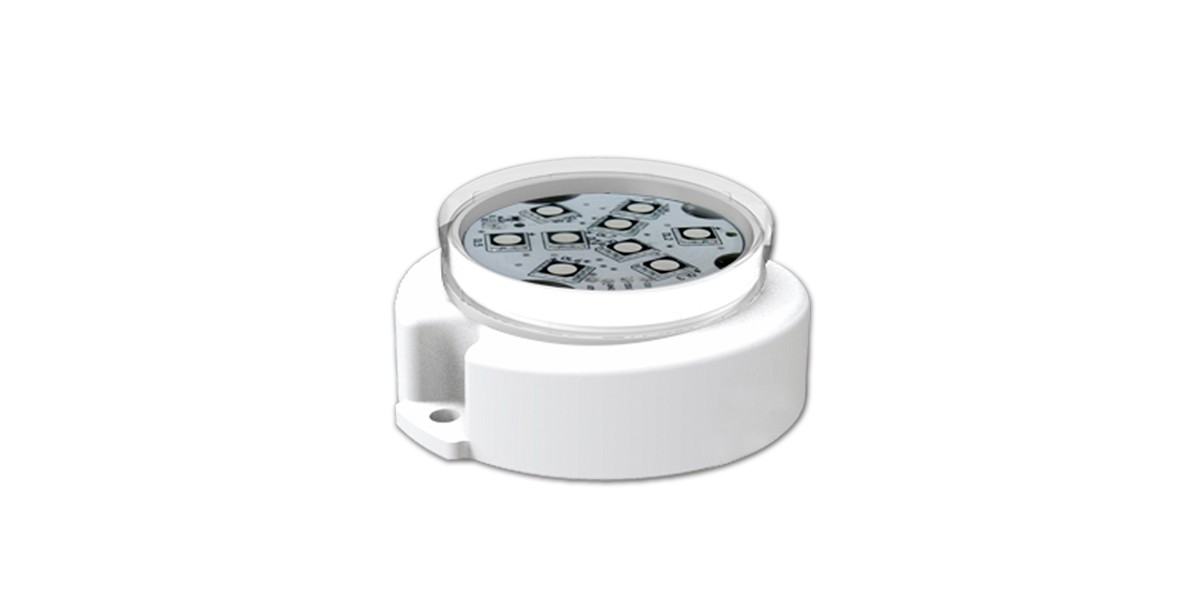

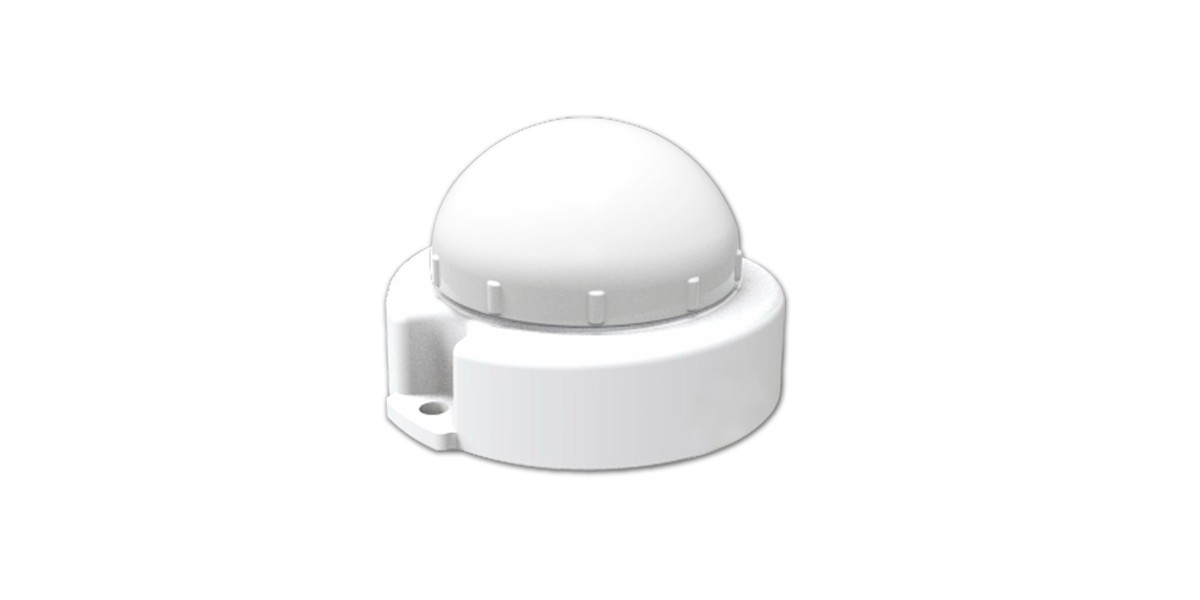

Round contour C1038S-C/F

Waterproof:

1.The circuit is closed of the whole lights body by silica gel;

2.Ingress protection IP66.

Configuration:

1.Small and delicacy,easy to hide and invisible;

2.Power cable: Adopted rubber cable which is abided by the GB7000.1 - 2015 5.2 requirement for outdoor application, the rubber cable is welded solidly to the PC board of LED light, which is to solve the problems completely by using pin pressure-fit procedure, such as pin oxidized and loosing contact etc.

Installation: Fixed by screw easy to install and invisible, suitable for exterior walls installation.

Control:

1.16.7 million lighting effects of RGB color changing, achieve synchronization, chasing, flowing light effects, DMX512 compatible;

2.Adopted RCS-8000-SD Intelligent LED light control system, maximum controlled 5.4 million pixels, maximum distance between 2 lights is up to 6m.

Application: Suitable for decorative lighting such as square, landscape, facade building, large building, theme park and entertainment areas etc.

Luminaires shapeRound
Glass materialfrosted、smooth
LED quantity10、9
LED color (single color)5000k(WH)、4000k(WN)、2708-2735K、3011-3075K、3 in 1 red green blue (RGB)
Power input24V DC、12V DC
ControlDMX low-power update
Installation
Cables outlet
Electricity Way直流
Way of connecting wiresSeries power cable,no waterproof connector
Specification of LED2835、20mA
Lamp length*
LED TypeOSRAM3
