Waterproof:
1.Imported silicon rubber material is adopted forwaterproof gasket;
2.Ingress protection IP66.
Configuration:
1.According to the LED heat dissipation performance, the heating is conducted quickly through the luminaire structure to guarantee the LED luminous efficiency and life span;
2.According to the GB7000.1 - 2015 5.2 requirements of outdoor luminaire, waterproof connector (Nickel-plated brass) is a must to be adopted to fix power cable. anti-pull up and does not easy to loose;
3.Adopted rubber cable which is abided by the GB7000.1 - 2007 5.2 requirement for outdoor application. the rubber cable is much more durable than PVC using at outdoor application. PVC is fragile easily when used at outdoor.
Optical: Light output form 4 directional of luminaire, point light is on the top of luminaire, to create unique petaline shape light effect.
Installation: Fixed by the screws, easy for installation.
Control: 16.7 million lighting effects of RGB color changing, achieve synchronization, chasing, flowing light effects, DMX512 compatible.

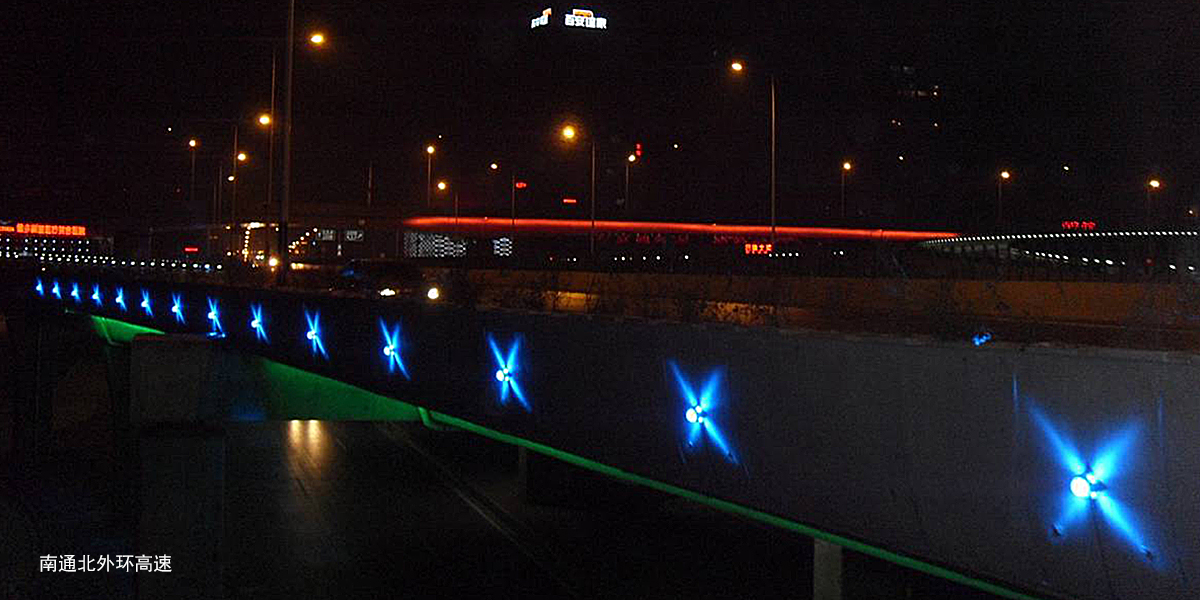

Application: Suitable for outline lighting of urban building and bridge railing.
Luminaires shape | Round |
---|---|
Glass material | frosted |
LED quantity | 9 |
LED color (single color) | |
Power input | 24V DC |
Control | DMX low-power update |
Installation | |
Cables outlet | |
Electricity Way | 直流 |
Way of connecting wires | Parallel power cable,no waterproof connector、Series power cable,no waterproof connector |
Specification of LED | 350mA+60mA、350mA+20mA |
Lamp length | * |
LED Type | OSRAM1 |
