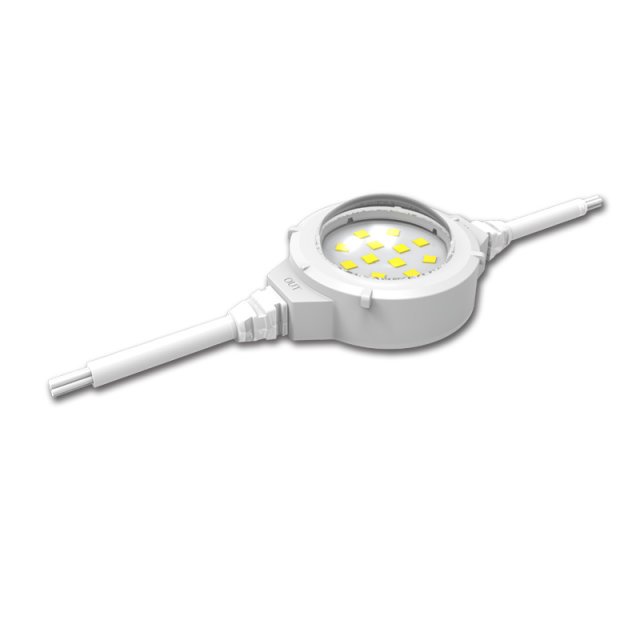

Round contour C1022S

Waterproof:

1.The circuit is closed of the whole lights body by silica gel;

2.Ingress protection IP66.

Configuration:

1.Diffuser and light fixture are molded together, LED surface is without glue filling treatment, to prevent the color temperature drifting effectively;

2.Plastic integrated injection molding cable with fine sealing performance, antipull up and does not easy to loose;

3.Allow inner reflector to be added, allow the light projection to be changed, improve the efficiency of luminaire, reducing light pollution;

4.Clear diffusor adopted imported high transmittance PC material with anti-UV & anti-aging.

Installation:

1.Bottom clip fixed, easy for installation;

2.Luminaire is installed in the special light trough, it is simple and invisible.

Optics:

Adopted 4in1 (RGBW) LED be able to create the best uniformity of full white light range of color temperature (such as 6000K,5000K,4000K,3000K,2200K and colors light (such as water blue, sky blue, light purple, light green, amber, water red), and it is also good to achieve much better pure white light and color mixing lighting effect.

Control:

1.16.7 million lighting effects of RGB color changing, achieve synchronization, chasing, flowing light effects, DMX512 compatible;

2.Luminaires with the functions of testing and feedback of temperature and electrical parameters.

Application: Suitable for decorative effect such as square, outdoor landscape, facade building, large building, theme park, entertainment areas and splicing of large led display screen.

Luminaires shapeRound
Glass materialsmooth
LED quantity12
LED color (single color)3 in 1 red green blue (RGB)、4-in-1 RGBWH 5000k、4 in 1 red green blue 4000k(RGBWN)、5000k(WH)、4000k(WN)、2708-2735K、3011-3075K
Power input24V DC
ControlDMX low-power update
InstallationBottom installation
Cables outlet
Electricity Way直流
Way of connecting wiresSeries power cable,no waterproof connector、Parallel power cable,no waterproof connector
Specification of LED20mA、2835
Lamp length*
LED TypeOSRAM3、EPISTAR
