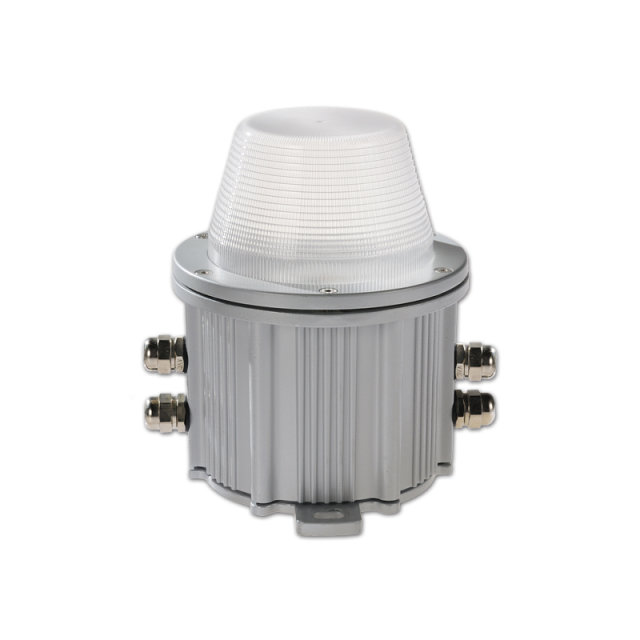

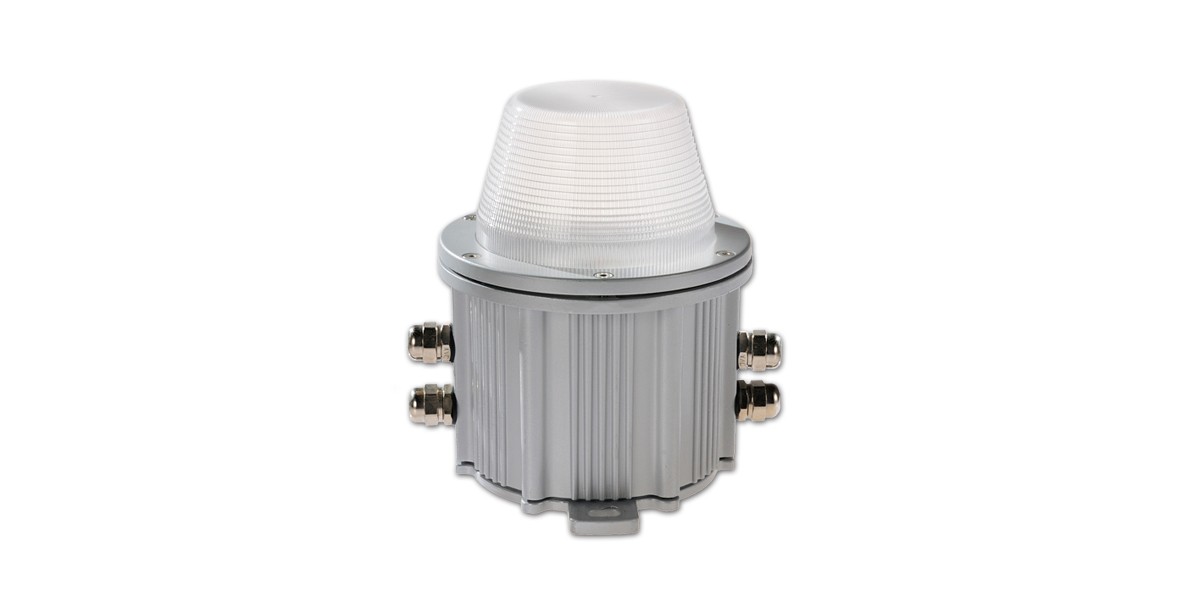

Round contour C1013A/B5/B/C/S

Waterproof:

1.Adopt air filter device for preventing moisture condensation inside the luminaire.balance the pressure difference between internal and external of luminaire;

2.Imported silicon rubber material is adopted for waterproof gasket;

3.Ingress protection IP66.

Anti-static:Special electronic component and circuit against static(ESD)and surge has been adopted according to the standard of IEC61000-4(level 4).Max. (Peak Current)up to 3000 A(8/20μs) .

Universal voltage:100~240VAC±10%.

The advantages are as followings:

1.It is applicable to input voltage of most countries and suitable to the areas of wide range voltage fluctuation,universal voltage is also good for the stability of LED brightness and life span.

2. It is not only good for cost saving and time saving to integrate LED driver and control system into light fitting,but also it is good for the overall reliability of LED products and control system.

Configuration:

1.Reduce the wind resistance by streamline shape of PC cover;

2.Anti-vibration by adding stainless spring pad;

3.Special optic design inside the pc cover to enhance the color mixing of light effect;

4.According to the LED heat dissipation performance, the heating is conducted quickly through the luminaire structure to guarantee the LED luminous efficiency and life span;

5.According to the GB7000.1 -2015 5.2 requirements of outdoor luminaire, waterproof connector (Nickel-plated brass) is a must to be adopted to fix power cable. anti-pull up and does not easy to loose;

6.Adopted rubber cable which is abided by the GB7000.1-2015 5.2 requirement for outdoor application. the rubber cable is much more durable than PVC using at outdoor application. PVC is fragile easily when used at outdoor;

Control: 16.7 million lighting effects of RGB color changing, achieve synchronization, chasing, flowing light effects, DMX512 compatible.

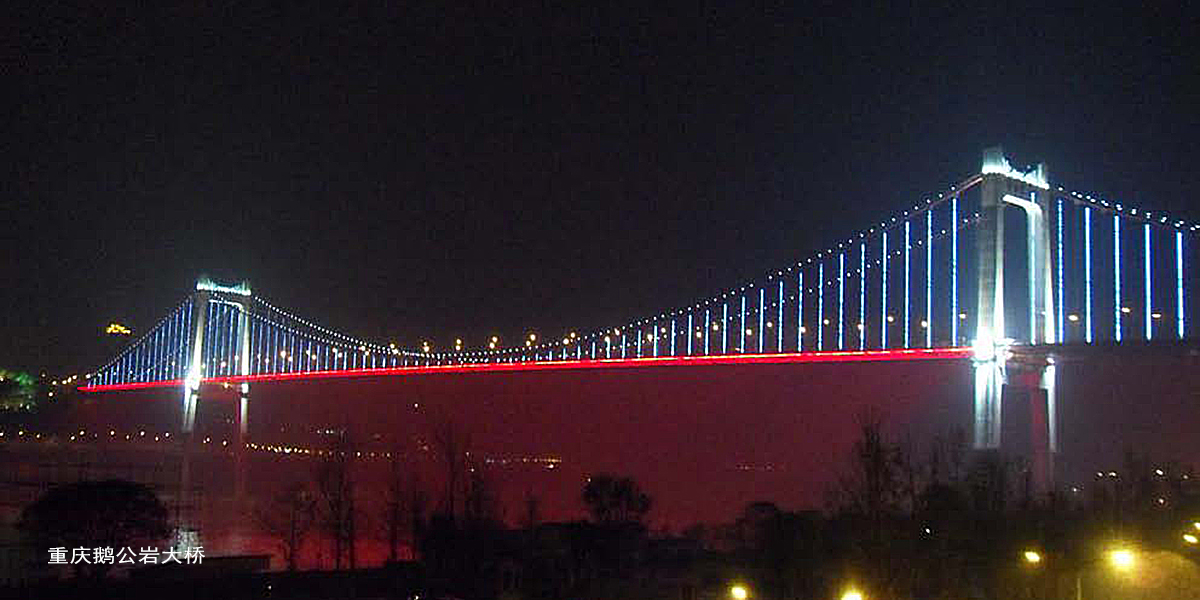

Application: Suitable for outline lighting of urban building and bridge railing.
