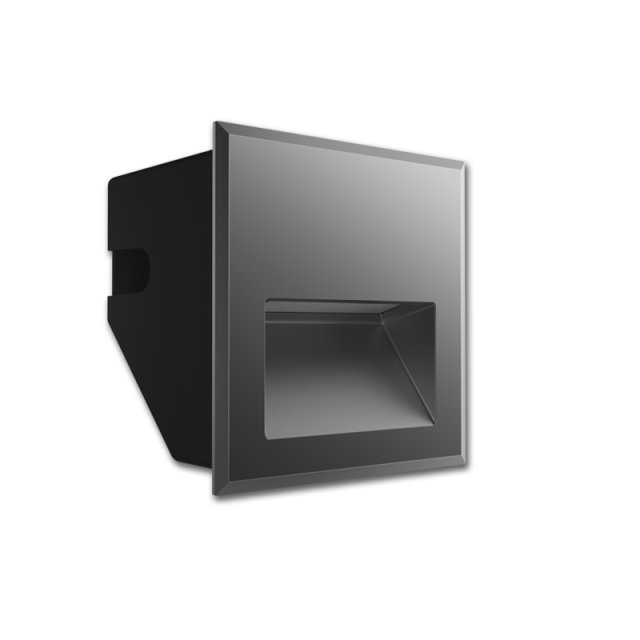

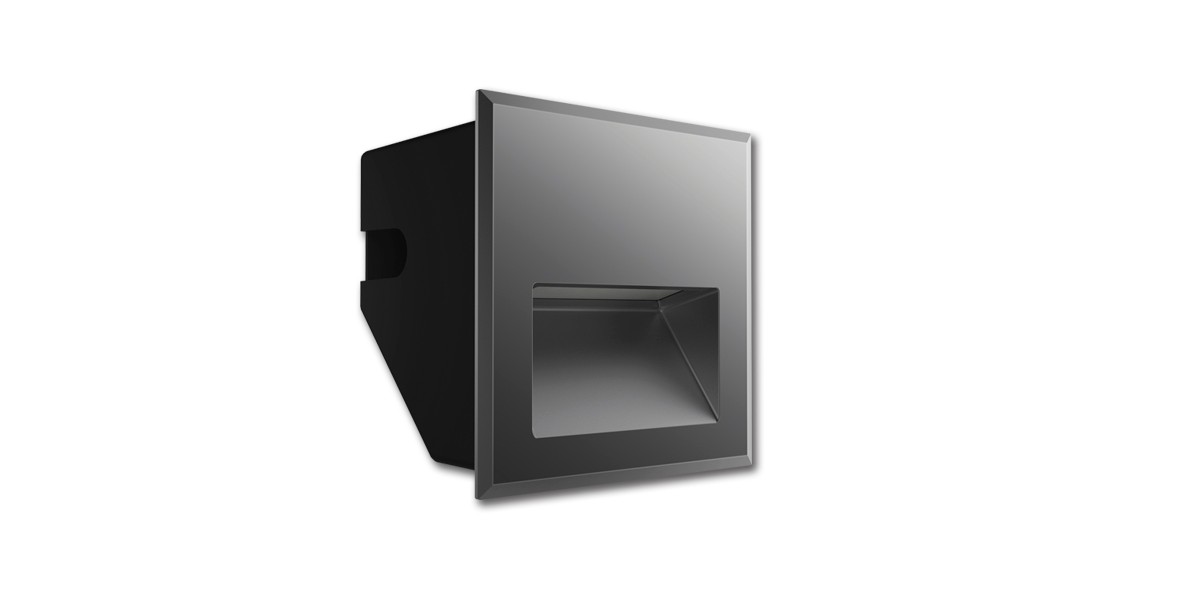

Standard W2016S

Waterproof:

1.Anti-negative pressure power cable to prevent water entering into the luminaire

2.Imported silicon rubber material is adopted for waterproof gasket;

3.Ingress protection IP66.

Anti-static:Special electronic component and circuit against static(ESD)and surge has been adopted according to the standard of IEC61000-4(level 4).Max. (Peak Current)up to 3000 A(8/20μs) .

Universal voltage:100~240VAC±10%.

The advantages are as followings:

1.It is applicable to input voltage of most countries and suitable to the areas of wide range voltage fluctuation,universal voltage is also good for the stability of LED brightness and life span.

2.It is not only good for cost saving and time saving to integrate LED driver and control system into light fitting,but also it is good for the overall reliability of LED products and control system.

Configuration:

1.Die-cast aluminum, stainless steel surface cover;

2.PCB is tiled, surface panel adopted translucent and frosted PC.

Application: Suitable for external wall landscape lighting of square, step and etc.
