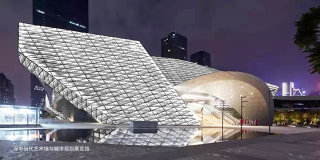

Application effect

40度角 60度角

40度角

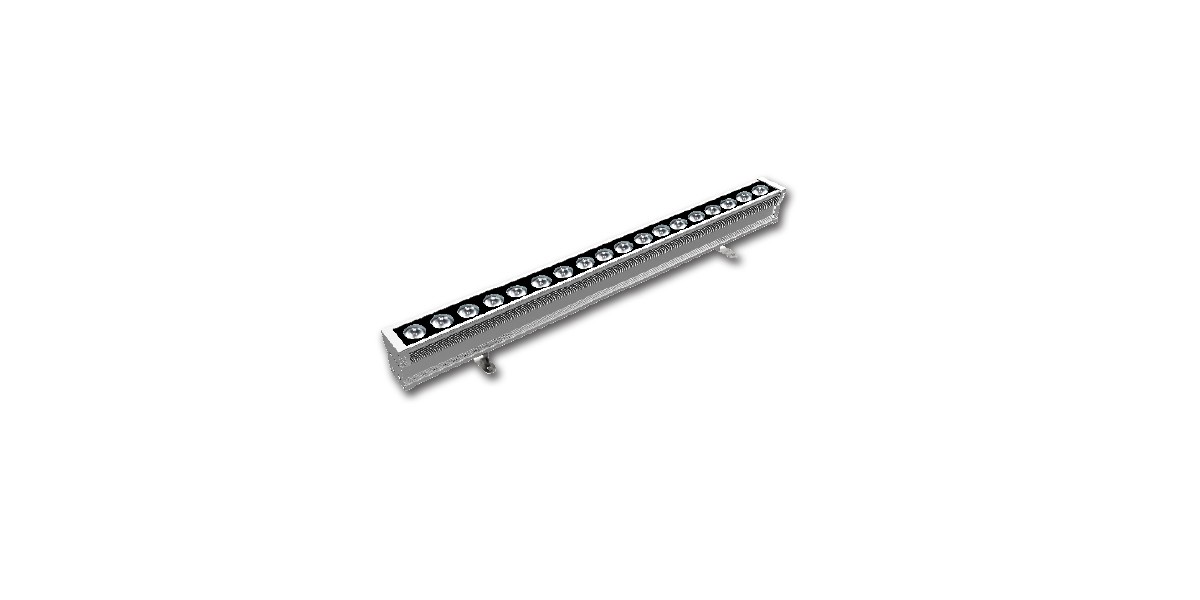

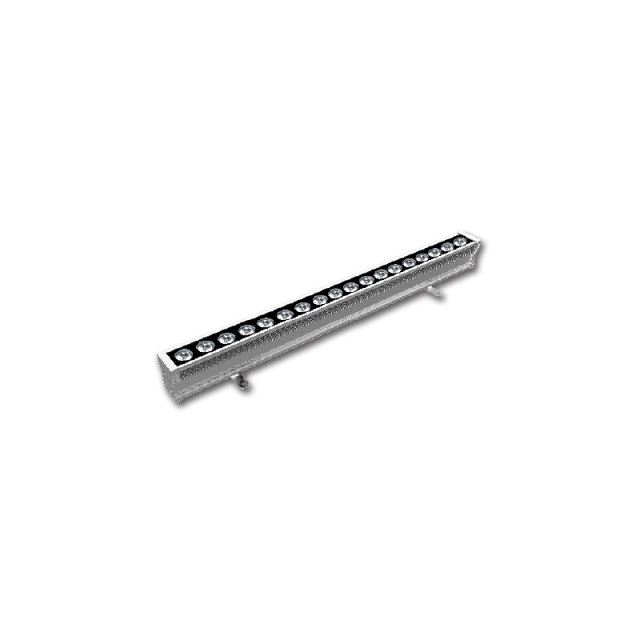

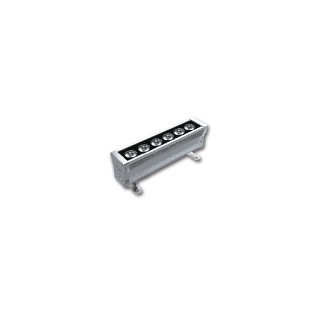

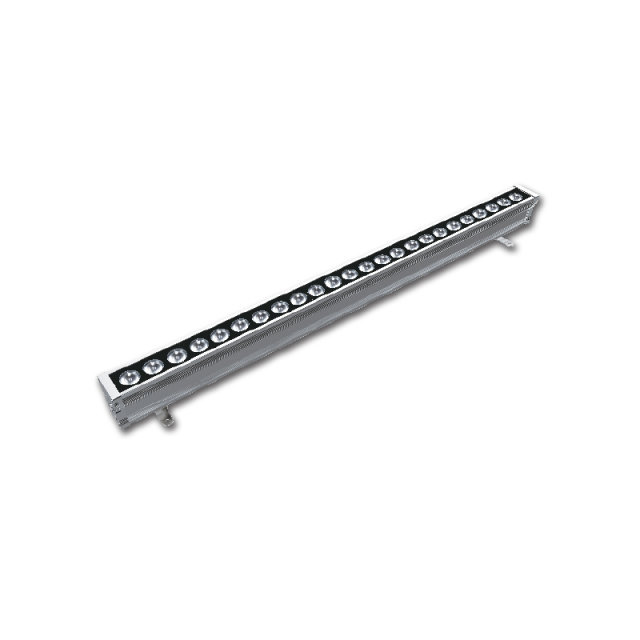

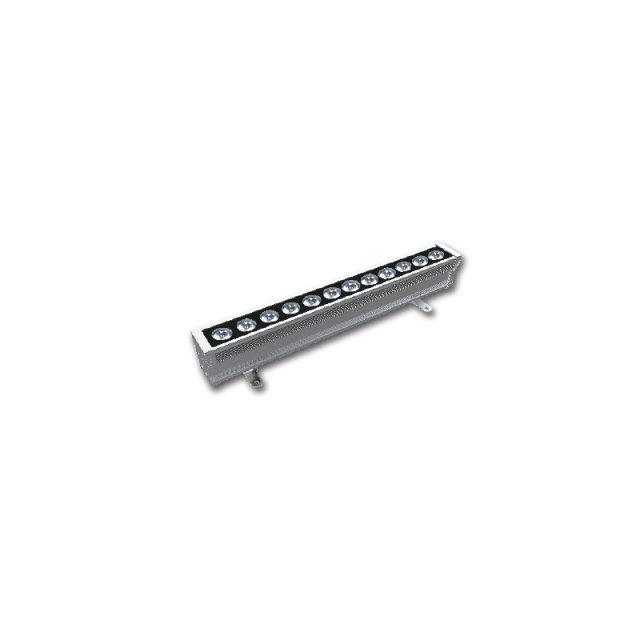

High power 4-in-1 luminaires F3331/2/3/4A/B5

Waterproof:

1.Adopt air filter device for preventing moisture condensation inside the luminaire.  balance the pressure difference between internal and external of luminaire;

2.Imported silicon rubber material is adopted for waterproof gasket;

3.Ingress protection IP66.

Configuration:

1.According to the LED heat dissipation performance, the heating is conducted quickly through the luminaire structure to guarantee the LED luminous efficiency and life span;

2.Aluminum module design which is composed of convective cooling airflow hole,to improve the cooling of luminaires to guarantee the LED luminous efficiency and life span;

3.Special bracket design of luminaire to adjust the angle of lighting projection horizontally,easy for installation.

GB: According to CQC (China Quality Certification Center) and EMC (Electromagnetic Compatibility) standard luminaires are designed strictly.

Optics:

Adopted 4in1 (RGBW) LED be able to create the best uniformity of full white light range of color temperature (such as 6000K,5000K,4000K,3000K,2200K and colors light (such as water blue, sky blue, light purple, light green, amber, water red), and it is also good to achieve much better pure white light and color mixing lighting effect.

Control: 16.7 million lighting effects of RGB color changing, achieve synchronization, chasing, flowing light effects, DMX512 compatible.

Application: Suitable for landscape lighting of square, outdoor landscape, building facade, large building, theme park and entertainment areas etc.

Luminaires shapeStrip
Glass materialJade black
LED quantity6、4、12、8、18、24、16
LED color (single color)4 in 1 red green blue 4000k(RGBWN)、4-in-1 RGBWH 5000k、4 in 1 red green blue 3000k(RGBWA)
Power input36V DC
ControlProtocol control
InstallationBottom installation
Cables outletBottom outlet、Side face outlet
Electricity Way直流、100~240V±10%
Way of connecting wiresSeries power cable,with waterproof connector1
Specification of LED350mA、500mA
Lamp length350、650、1000、1250
LED TypeCREE XML
