Application effect

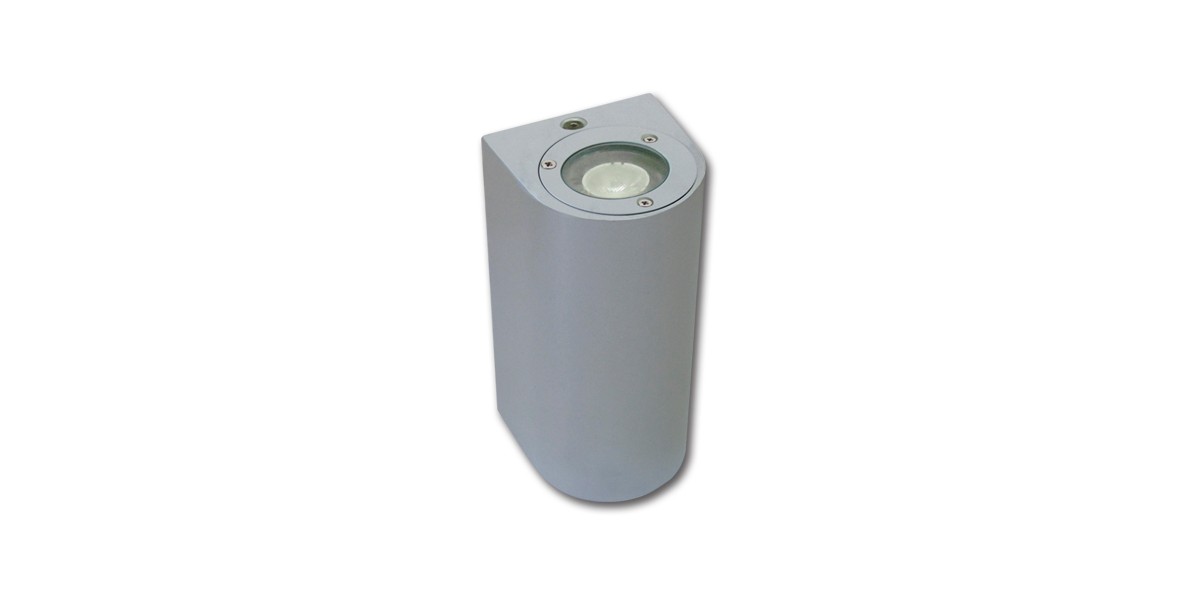

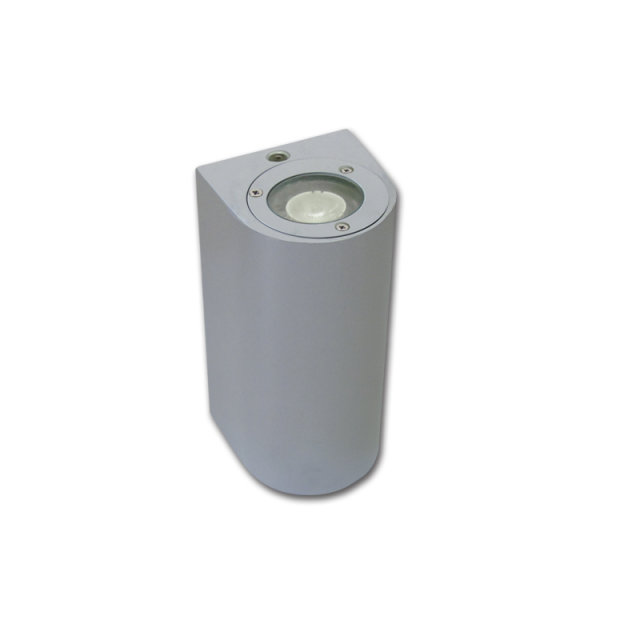

Standard W1021A/B5/B/C

Waterproof:

1.Imported silicon rubber material is adopted for waterproof gasket;

2.Ingress protection IP66.

Anti-static:Special electronic component and circuit against static (ESD) and surge has been adopted according to the standard of IEC61000-4(level 4).Max. (Peak Current)up to 3000 A(8/20μs).

Configuration:

1.According to the LED heat dissipation performance, the heating is conducted quickly through the luminaire structure to guarantee the LED luminous efficiency and life span;

2.Die-cast aluminum,powder paint with high corrosion resistance.

Universal voltage:100~240VAC±10%.

The advantages are as followings:

1.It is applicable to input voltage of most countries and suitable to the areas of wide range voltage fluctuation,universal voltage is also good for the stability of LED brightness and life span.

2.It is not only good for cost saving and time saving to integrate LED driver and control system into light fitting,but also it is good for the overall reliability of LED products and control system.

Installation: Stainless steel bracket, easy for installation.

Optics:

1.Optional illumination: up,down,up and down.

2.Optional beam angle : 8°,13°,20°,30°.

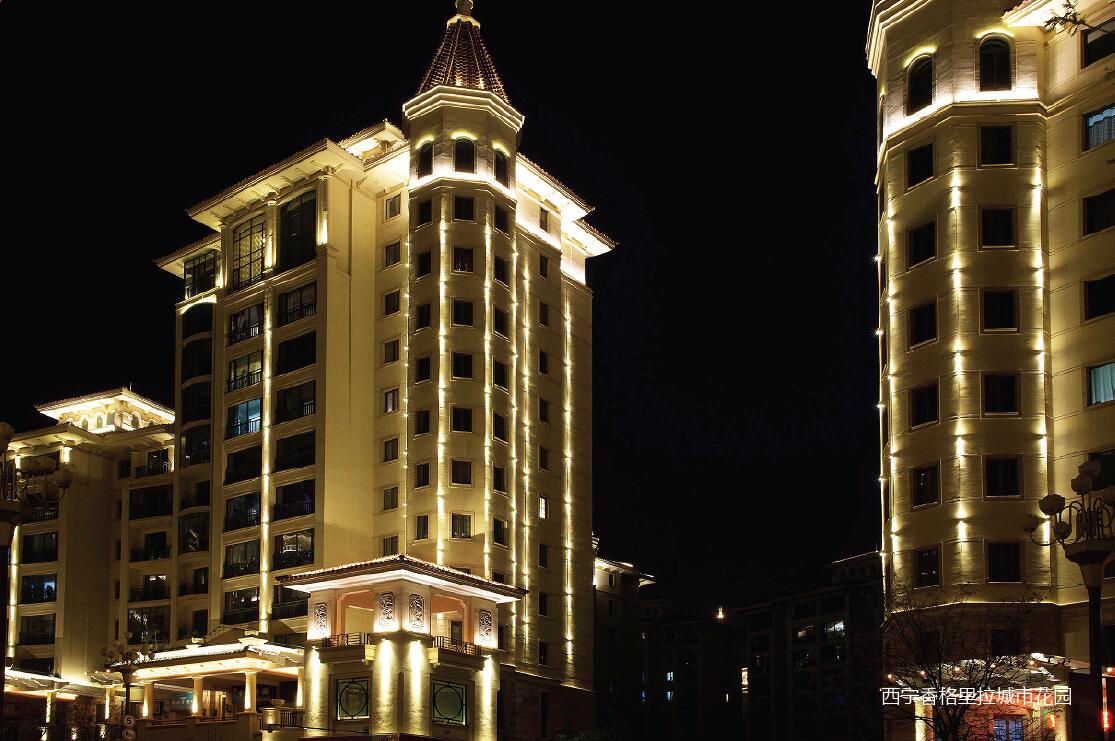

Application: Suitable for external architecture facade landscape lighting of hotels, apartments, scenic spots and other places.

Luminaires shapeRound
Glass materialsmooth
LED quantity2
LED color (single color)Red、Green、Blue、Amber、5000k(WH)、4000k(WN)、2708-2735K、3011-3075K
Power input
Control
Installation
Cables outlet
Electricity Way100~240V±10%
Way of connecting wiresParallel power cable,no waterproof connector
Specification of LED350mA、500mA、700mA、1000mA
Lamp length*
LED TypeOSRAM1
