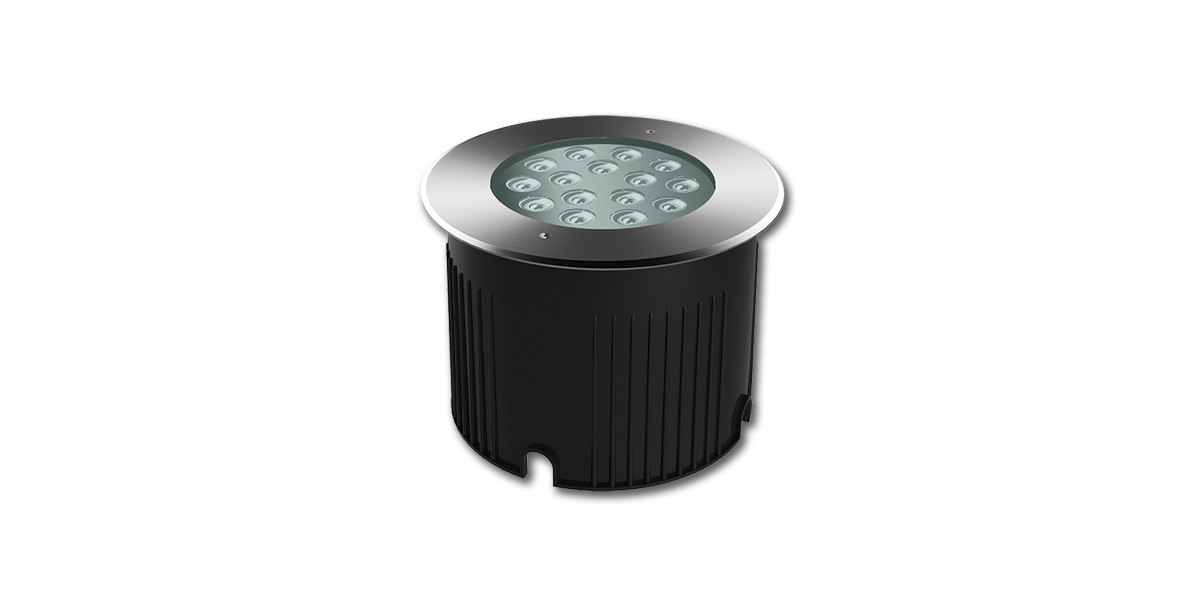

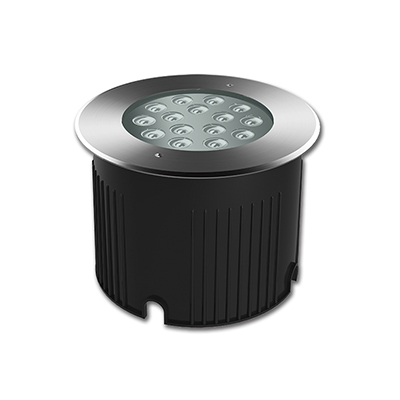

Ultra-narrow beam angle G1035B/C

Waterproof:

1.Imported silicon rubber material is adopted for waterproof gasket;

2.Anti-negative pressure power cable to prevent water entering into the luminaire；

3.Ingress protection IP67.

Anti-static: Special electronic component and circuit against static(ESD)and surge has been adopted according to the standard of IEC61000-4(level 4).Max. (Peak Current)up to 3000 A(8/20μs) .

Universal voltage:100~240VAC±10%.

The advantages are as followings:

1.It is applicable to input voltage of most countries and suitable to the areas of wide range voltage fluctuation,universal voltage is also good for the stability of LED brightness and life span.

2.It is not only good for cost saving and time saving to integrate LED driver and control system into light fitting,but also it is good for the overall reliability of LED products and control system.

Configuration:

1.According to the LED heat dissipation performance, the heating is conducted quickly through the luminaire structure to guarantee the LED luminous efficiency and life span;

2.The glass is on the same horizontal level as the cover to avoid dust deposition;

3.Die-cast aluminum housing,powder paint with high corrosion resistance,stainless steel surface cover;

4.15mm thickness glass with strong load bearing capacity;

5.Thermal insulation between glass and housing through silicon rubber as gasket to avoid excessive surface temperature of glass.

Optics: Adopted ultra-narrow beam lens 4°,95% luminous intensity has been focused on center beam.

Control: 16.7 million lighting effects of RGB color changing, achieve synchronization, chasing, flowing light effects, DMX512 compatible.

Application: Suitable for lighting up the facade of the super tall architecture.
