Waterproof:
1.Anti-negative pressure power cable to prevent water entering into the luminaire；
2.Imported silicon rubber material is adopted for waterproof gasket;
3.Ingress protection IP68.
Configuration:
1.According to the LED heat dissipation performance, the heating is conducted quickly through the luminaire structure to guarantee the LED luminous efficiency and life span;
2.Zinc alloy housing,DuPont epoxy powder paint with high corrosion resistance, high performance of watertight, corrosion, anti-uplift for luminaire;
3.Toughened ultra-white glass,aluminum gray finish with high transmittance.
GB: According to CQC (China Quality Certification Center) and EMC (Electromagnetic Compatibility) standard luminaires are designed strictly.
Installation:
1.Bracket installation and pre-set mounting housing embedded installation;
2.Installed by changing the positive tube, suitable for multiple sprinkler heads that diameter less than 50mm.
Optics: Optional multiple LED source and lens.
Control: 16.7 million lighting effects of RGB color changing, achieve synchronization, chasing, flowing light effects, DMX512 compatible.

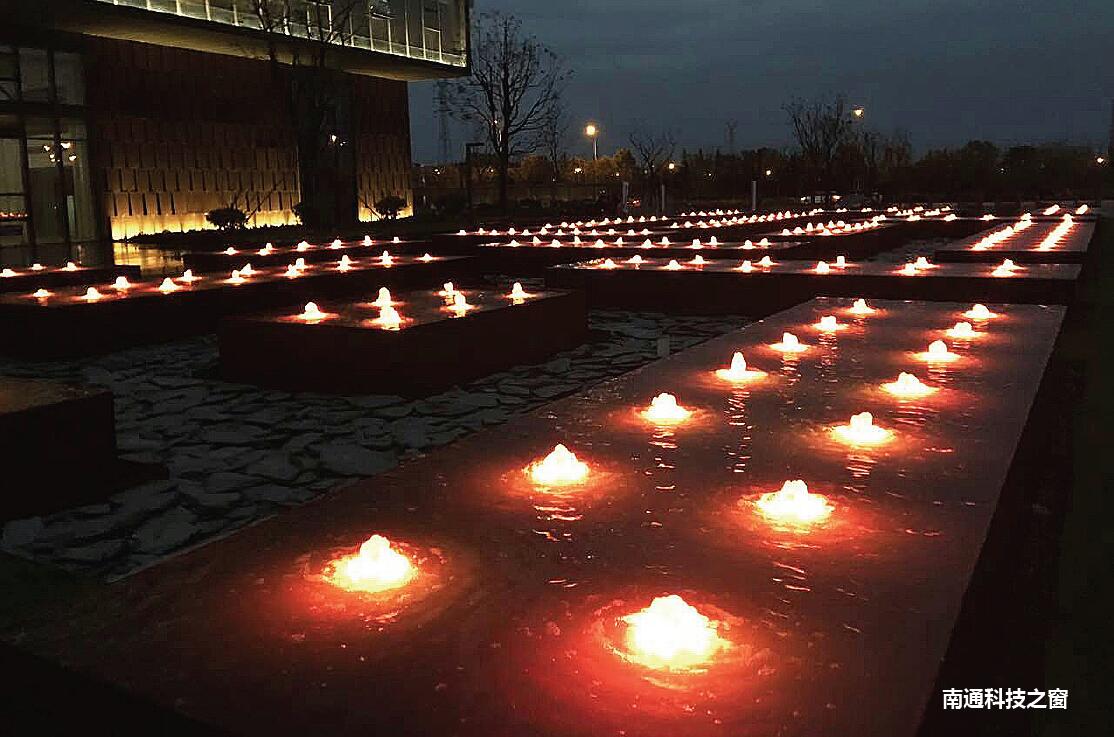

Application: Suitable for landscape lighting of poll fountain and dry fountain such as park, square etc.

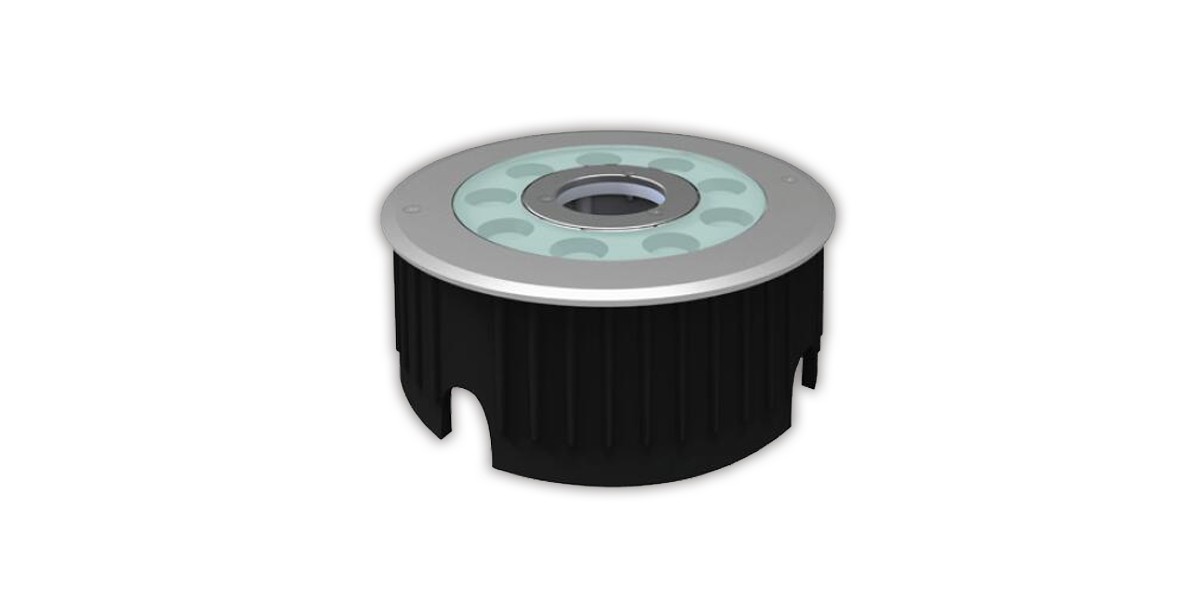

| Luminaires shape | Round |
|---|---|
| Glass material | art glass with diamond silver gray color |
| LED quantity | 12 |
| LED color (single color) | Red、Green、Blue、Amber、5000k(WH)、4000k(WN)、2708-2735K、3011-3075K、3 in 1 red green blue (RGB) |
| Power input | 12V DC |
| Control | DMX512 high-power |
| Installation | |
| Cables outlet | |
| Electricity Way | 直流 |
| Way of connecting wires | Parallel power cable,no waterproof connector、Series power cable,no waterproof connector |
| Specification of LED | 350mA、500mA、700mA |
| Lamp length | * |
| LED Type | OSRAM1 |
