Application effect

Standard U1032A/B5/B/C

Waterproof:

1.Imported silicon rubber material is adopted for waterproof gasket;

2.Anti-negative pressure power cable to prevent water entering into the luminaire;

3.Ingress protection IP68.

Configuration:

1.According to the LED heat dissipation performance, the heating is conducted quickly through the luminaire structure to guarantee the LED luminous efficiency and life span;

2.Novel and unique design, rotatable bracket, die-cast brass housing, surface cover and bracket, DuPont epoxy powder golden paint with high corrosion resistance, toughened ultra-white glass;

3.High performance of watertight, corrosion, anti-uplift for luminaire.

Installation: U shape base bracket, easy for installation.

Control: 16.7 million lighting effects of RGB color changing, achieve synchronization, chasing, flowing light effects, DMX512 compatible.

Application: Suitable for public place pool lighting such as park, square, pedestrian street, courtyard, dance hall and road etc.

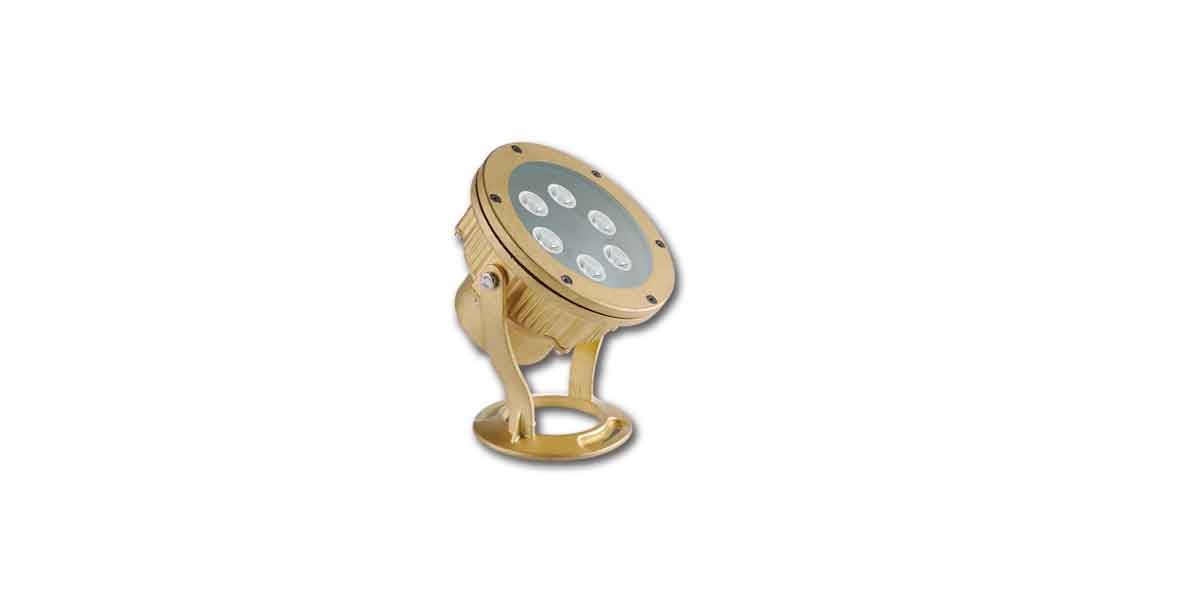

Luminaires shapeRound
Glass materialart glass with diamond silver gray color
LED quantity6
LED color (single color)Red、Green、Blue、Amber、5000k(WH)、4000k(WN)、2708-2735K、3011-3075K、3 in 1 red green blue (RGB)
Power input12V DC
ControlDMX512 high-power
Installation
Cables outlet
Electricity Way直流
Way of connecting wiresParallel power cable,no waterproof connector、Series power cable,no waterproof connector
Specification of LED350mA、500mA、700mA、1000mA
Lamp length*
LED TypeOSRAM1
