Waterproof:
1.Imported silicon rubber material is adopted for waterproof gasket;
2.Anti-negative pressure power cable to prevent water entering into the luminaire;
3.Ingress protection IP68.
Configuration:
1.According to the LED heat dissipation performance, the heating is conducted quickly through the luminaire structure to guarantee the LED luminous efficiency and life span;

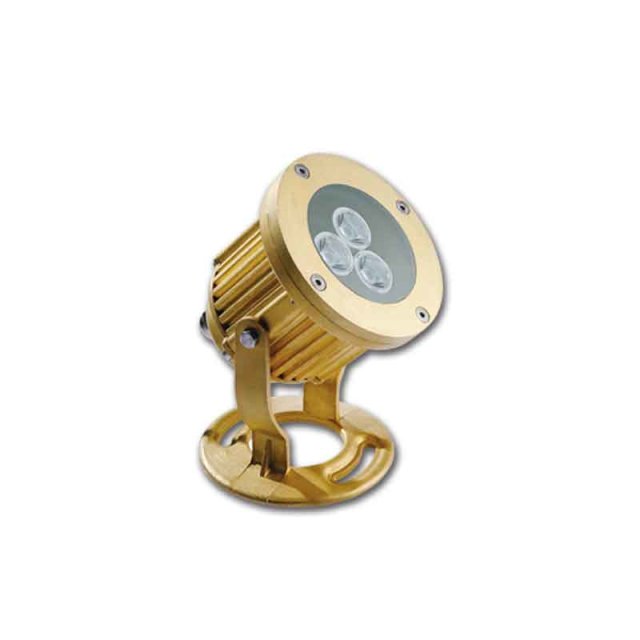

2.Novel and unique design, rotatable bracket, die-cast brass housing, surface cover and bracket, DuPont epoxy powder golden paint with high corrosion resistance, toughened ultra-white glass;
3.High performance of watertight, corrosion, anti-uplift for luminaire.
Installation: U shape base bracket, easy for installation.
Control: 16.7 million lighting effects of RGB color changing, achieve synchronization, chasing, flowing light effects, DMX512 compatible.
Application: Suitable for public place pool lighting such as park, square, pedestrian street, courtyard, dance hall and road etc.
Luminaires shape | Round |
---|---|
Glass material | art glass with diamond silver gray color |
LED quantity | 3 |
LED color (single color) | Red、Green、Blue、Amber、5000k(WH)、4000k(WN)、2708-2735K、3011-3075K、3 in 1 red green blue (RGB) |
Power input | 12V DC |
Control | DMX512 high-power |
Installation | |
Cables outlet | |
Electricity Way | 直流 |
Way of connecting wires | Parallel power cable,no waterproof connector、Series power cable,no waterproof connector |
Specification of LED | 350mA、500mA、700mA、850mA |
Lamp length | * |
LED Type | OSRAM1 |
