The advantages are as followings:
1.According to the characteristic of LED heat dissipation, the mechanical design and thermal principle are used to carry out to structural design of luminaire, combined with the material of high-thermal conductivity of high-purity aluminum alloy and the special processing technology , the effect of heat conduction, heat convection and heat radiation has been improved significantly, so that make “WuKong” Square series luminaire to achieve much more smaller, less weight, high light efficiency , energy saving, environmental protection and low carbon innovative products.

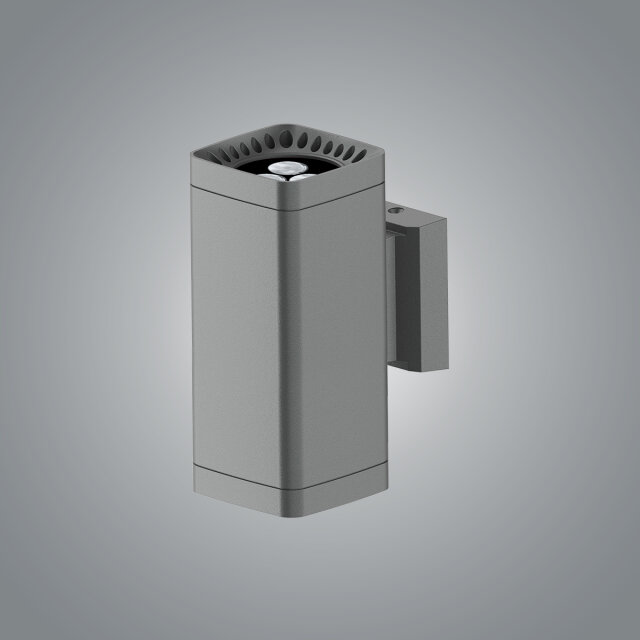

2. "Wu Kong" Wall light series, integrated 12 ° shielding angle into the anti-glare design, which is beautiful appearance, novel structure, easy for installation and adjustment.
Control：Standard DMX512 (1990) protocol compatible.
Application：Suitable for landscape lighting , such as hotels, apartments, scenic building exterior wall etc.
| Luminaires shape | Square |
|---|---|
| LED lifespan | 50,000 hours |
| LED quantity | 1 PCS+1PCS |
| LED color (single color) | 2700K/3000K/3500K/4000K/5000K/5700K/6500K |
| Beam Angle | 10°/15°/20°/25°/30°/45°/60°/3020°/6015° |
| Shielding Angle | 12° |
| Housing | Die-cast aluminum/aluminum alloy housing |
| Glass material | 4mm thickness toughened ultra-white glass |
| LED driver | 1800mA constant current driver |
| Power consumption | 8W*2 |
| Power input | 100~240V±10%,50/60Hz、24V DC、36V DC |
| Ingress protection | IP66 |
| Anti-static | IEC61000-4(Level 4) |
| Classification | I、III |
| Power/signalcable | 3*1.0mm2 rubber cable(High voltage)、2*1.0mm2 rubber cable(Low voltage)、2*0.75mm2 +3*0.5mm2 rubber cable(Controllable) |
| Control | DMX512(1990) |
| Power Factor(PF) | ≧0.5 |
| Ambient operating temperature | -20℃~+55 ℃(Ta+10℃) |
| Inrush current(Max) | 20A |
| Net weight | 0.6KG |
| Net weight | 0.6KG |
