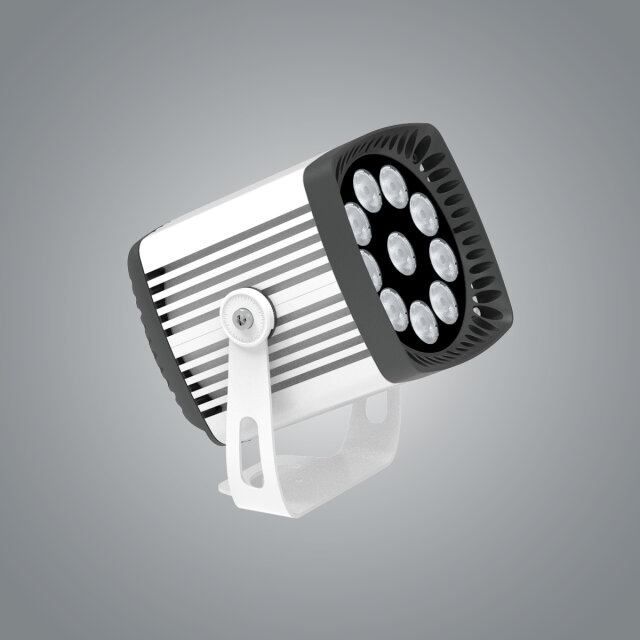

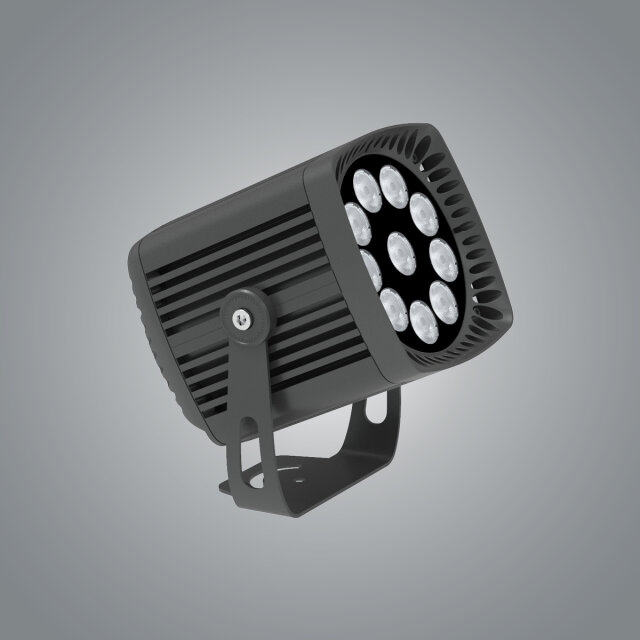

Floodlight FWK2531

The advantages are as followings:

1.According to the characteristic of LED heat dissipation, the mechanical design and thermal principle are used to carry out to structural design of luminaires, combined with the material of high-thermal conductivity of high-purity aluminum alloy and the special processing technology , the effect of heat conduction, heat convection and heat radiation has been improved significantly, so that make “Wu Kong” Square series luminaires to achieve much more smaller, less weight , high light efficiency , energy saving , environmental protection and low carbon innovative products.

2. With super power LED, accurately control the scattered light, so that the LED light efficiency is much more higher, the center light intensity is much more stronger, which provides a perfect solution for long-distance projection lighting.

3.Integrated 10 ° Shielding Angle  into the special design of luminaires.

ControlStandard DMX512 (1990) protocol compatible.

Application:Suitable for landscape lighting of square, outdoor landscape, building facade, facade lighting of individual building and historical building, landscape lighting of green plant etc.

Luminaires shapeSquare
LED lifespan50,000 hours
LED quantity10 pcs
HousingDie-cast aluminum/aluminum alloy housing、dark gray powder paint with high corrosion resistance
Glass material6mm thickness toughened ultra-white glass
LED color (color changing)4 in 1 Red/Green/Blue/White
Color Rendering index RaRa≥80
Shielding Angle10°
LED driver850mA constant current driver
Power consumption110W
Power input100~240V±10%,50/60Hz
Ingress protectionIP66
ClassificationI
Anti-staticIEC61000-4(Level 4)
Power/signalcable3*1.0mm2 rubber cable(High voltage)、CAT5-SFTP-4P(Controllable)
ControlDMX512(1990)
Power Factor(PF)≧0.9
Ambient operating temperature-20℃~+55 ℃(Ta+10℃)
Inrush current(Max)60A
InstallationU-bracket
Net weight5.5KG
