Waterproof:
1.Anti-negative pressure power cable to prevent water entering into the luminaire
2.Imported silicon rubber material is adopted for waterproof gasket;
3.Ingress protection IP67.
Anti-static: Special electronic component and circuit against static(ESD)and surge has been adopted according to the standard of IEC61000-4(level 4).Max. (Peak Current)up to 3000 A(8/20μs) .
Universal voltage:100~240VAC±10%.
The advantages are as followings:
1.It is applicable to input voltage of most countries and suitable to the areas of wide range voltage fluctuation,universal voltage is also good for the stability of LED brightness and life span.
2.It is not only good for cost saving and time saving to integrate LED driver and control system into light fitting,but also it is good for the overall reliability of LED products and control system.
Configuration:
1.According to the LED heat dissipation performance, the heating is conducted quickly through the luminaire structure to guarantee the LED luminous efficiency and life span;
2.The glass is on the same horizontal level as the cover to avoid dust deposition;
3.Die-cast aluminum, powder paint with high corrosion resistance,stainless steel surface cover;
4.15mm thickness glass with strong load bearing capacity;
5.Thermal insulation between glass and housing through silicon rubber as gasket to avoid excessive surface temperature of glass.
GB: According to CQC (China Quality Certification Center) and EMC (Electromagnetic Compatibility) standard luminaires are designed strictly.
Optics: Adopted asymmetrical lens to avoid anti-glare and achieve better effect of wall washing.
Control: 16.7 million lighting effects of RGB color changing, achieve synchronization, chasing, flowing light effects, DMX512 compatible.

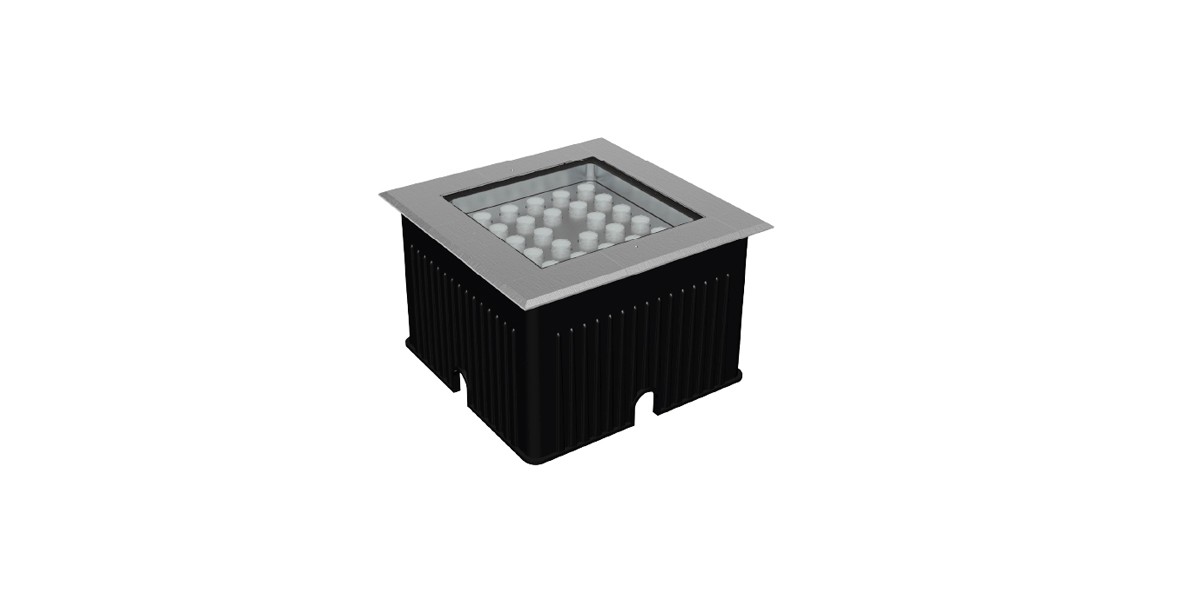

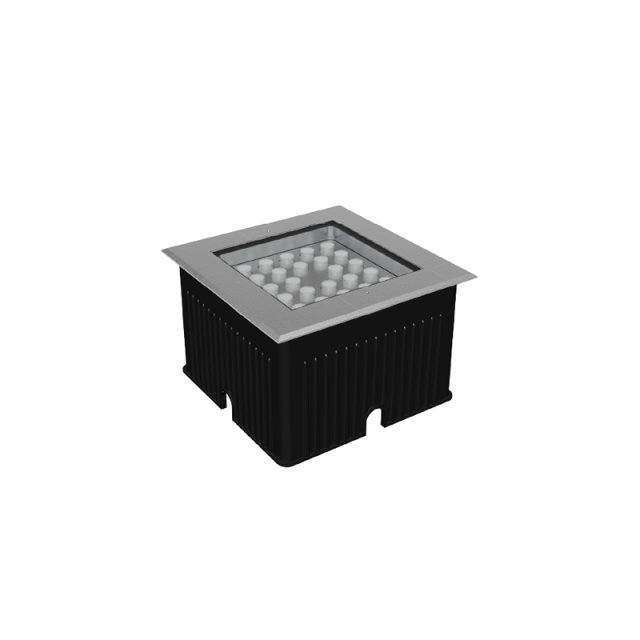

Luminaires shape | Square |
---|---|
Glass material | smooth |
LED quantity | 24 |
LED color (single color) | Red、Green、Blue、Amber、5000k(WH)、4000k(WN)、2708-2735K、3011-3075K、3 in 1 red green blue (RGB) |
Power input | 36V DC |
Control | DMX512 high-power |
Installation | |
Cables outlet | |
Electricity Way | 100~240V±10%、直流 |
Way of connecting wires | Parallel power cable,no waterproof connector、Series power cable,no waterproof connector |
Specification of LED | 350mA、500mA、700mA、850mA |
Lamp length | * |
LED Type | OSRAM1 |
