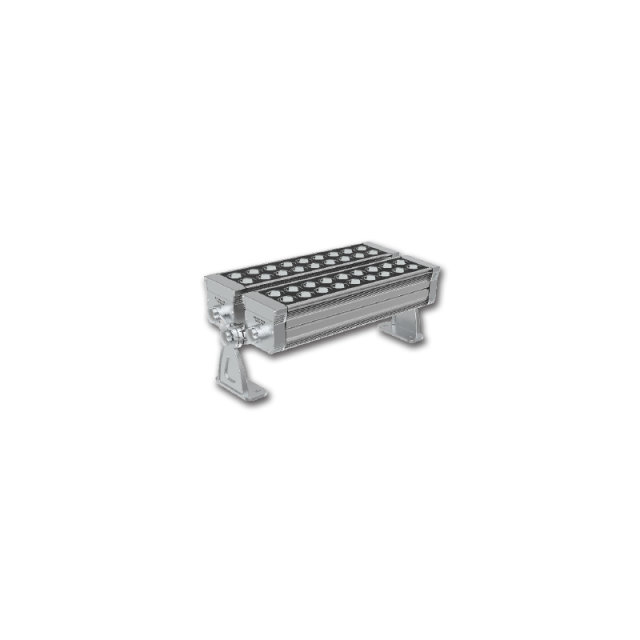

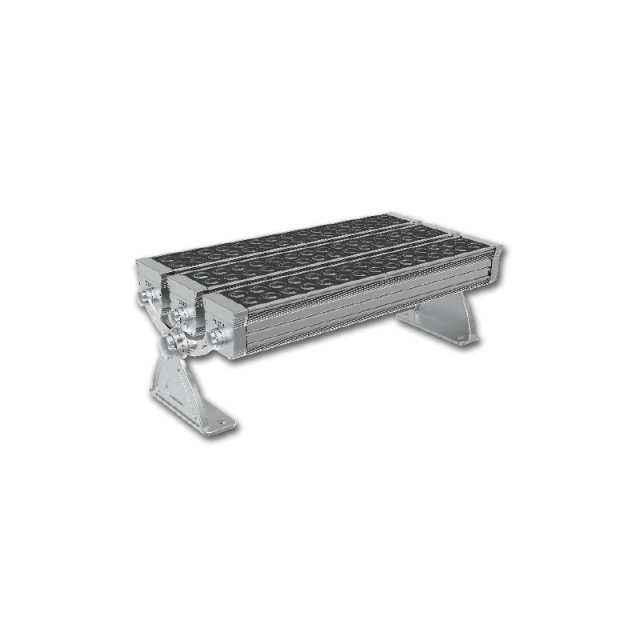

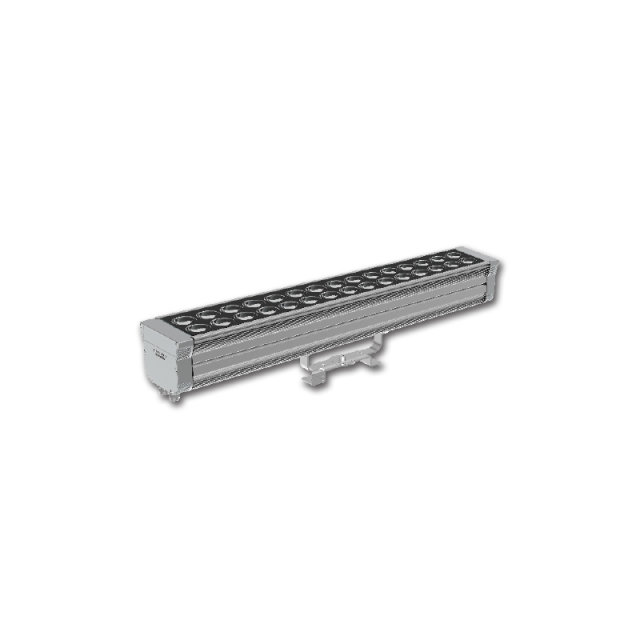

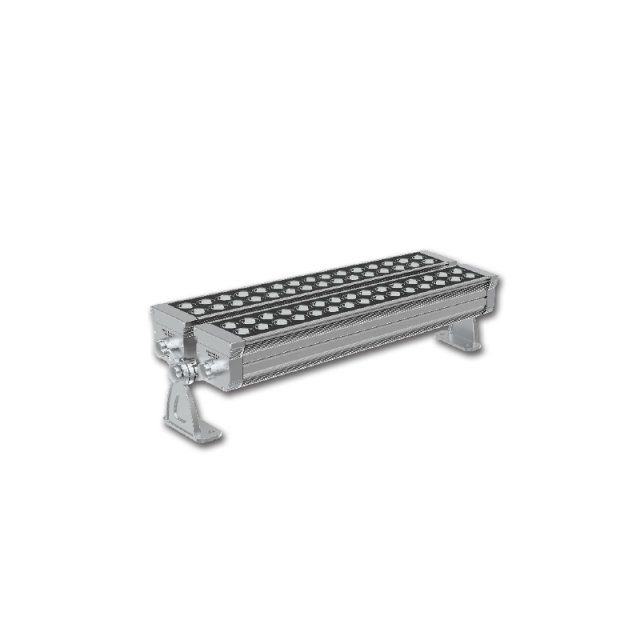

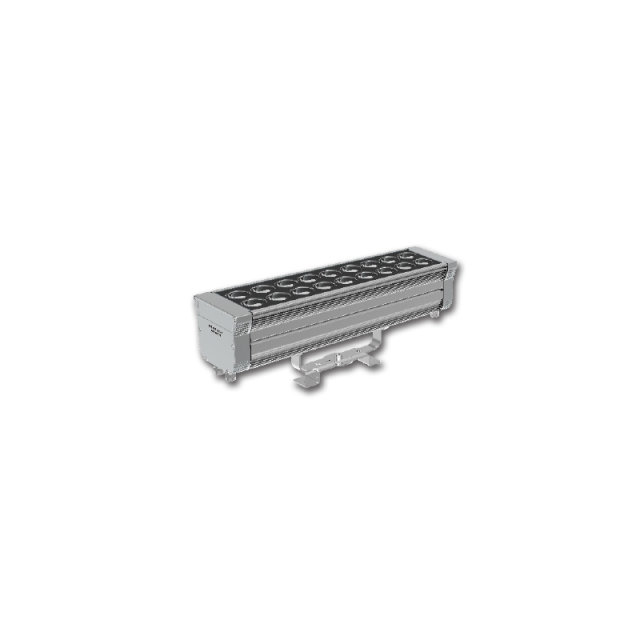

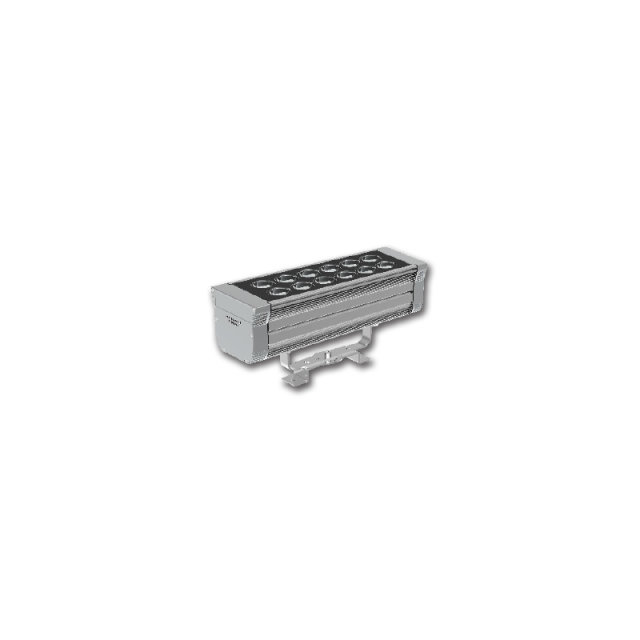

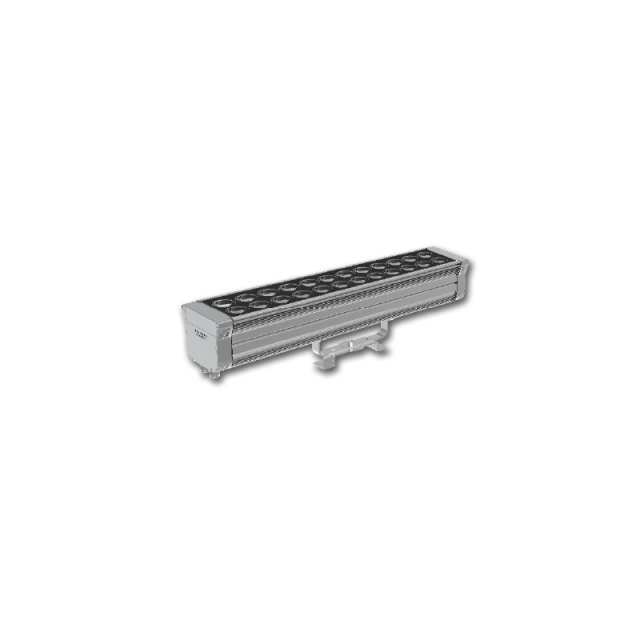

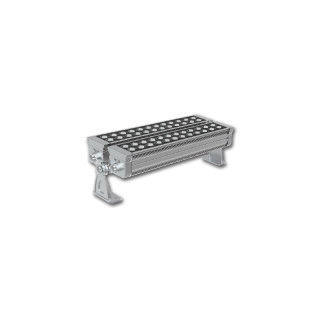

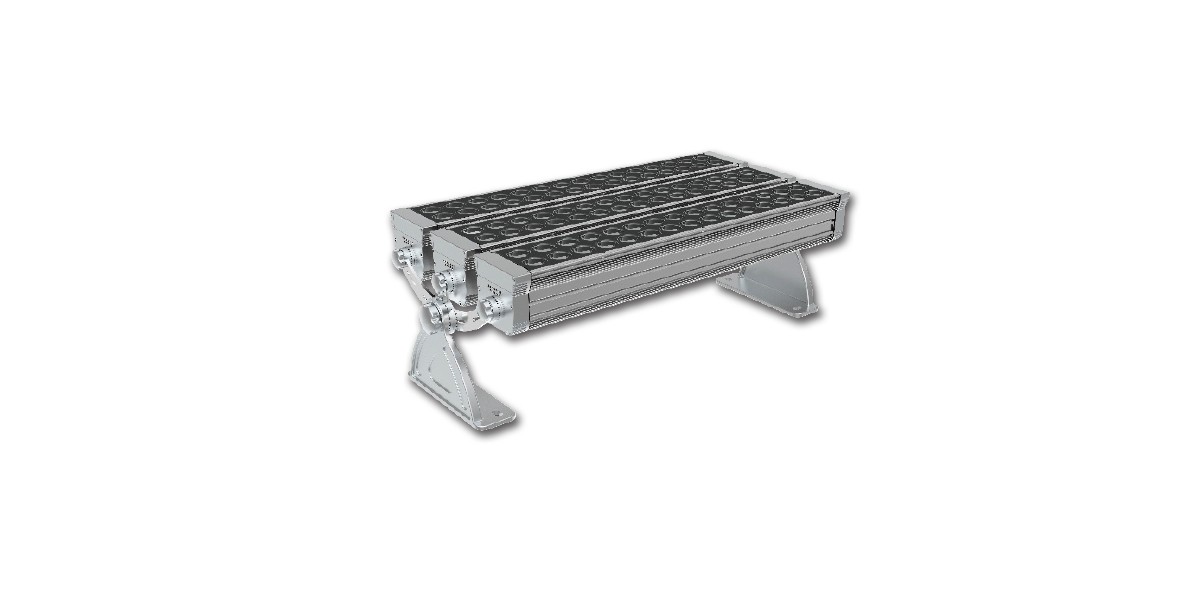

High power 4-in-1 luminaires F3081/2/3/4/5/6/7/8A/B5

Waterproof:

1.Adopt air filter device for preventing moisture condensation inside the luminaire.balance the pressure difference between internal and external of luminaire;

2.Imported silicon rubber material is adopted for waterproof gasket;

3.Ingress protection IP66.

Anti-static:Special electronic component and circuit against static (ESD) and surge has been adopted according to the standard of IEC61000-4(level 4).Max. (Peak Current)up to 3000 A(8/20μs).

Universal voltage:100~240VAC±10%.

The advantages are as followings:

1.It is applicable to input voltage of most countries and suitable to the areas of wide range voltage fluctuation, universal voltage is also good for the stability of LED brightness and life span.

2.It is not only good for cost saving and time saving to integrate LED driver and control system into light fitting,but also it is good for the overall reliability of LED products and control system.

Configuration:

1.According to the LED heat dissipation performance, the heating is conducted quickly through the luminaire structure to guarantee the LED luminous efficiency and life span;

2.Aluminum module design which is composed of convective cooling airflow hole,to improve the cooling of luminaires to guarantee the LED luminous efficiency and life span;

3.Special bracket design of luminaire to adjust the angle of lighting projection horizontally, easy for installation.

GB: According to CQC (China Quality Certification Center) and EMC (Electromagnetic Compatibility) standard luminaires are designed strictly.

Optics:

Adopted 4in1 (RGBW) LED be able to create the best uniformity of full white light range of color temperature (such as 6000K,5000K,4000K,3000K,2200K and colors light (such as water blue, sky blue, light purple, light green, amber, water red), and it is also good to achieve much better pure white light and color mixing lighting effect.

Control:

1.16.7 million lighting effects of RGB color changing, achieve synchronization, chasing, flowing light effects, DMX512 compatible.

2.Luminaires with the functions of testing and feedback of temperature and electrical parameters.

Application: Suitable for landscape lighting of square, outdoor landscape, building facade, large building, theme park and entertainment areas etc.
