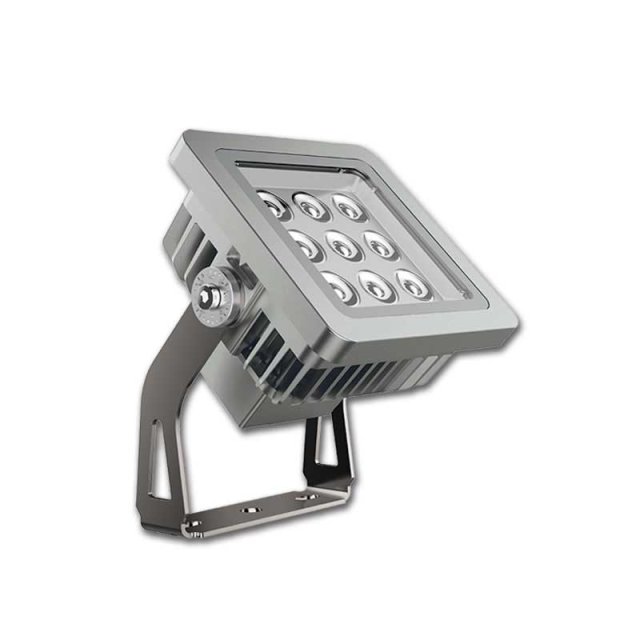

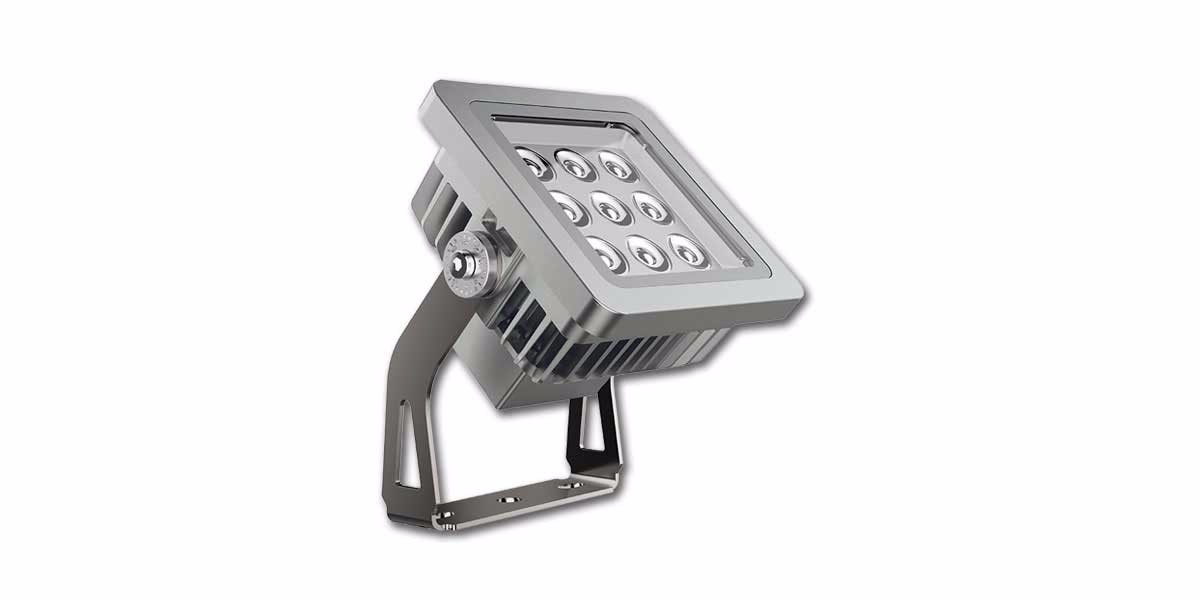

High power 4-in-1 luminaires F2221A

Waterproof:

1.Adopt air filter device for preventing moisture condensationinside the luminaire. balance thepressure difference between internal and external of luminaire;

2.Imported silicon rubber material is adopted for waterproof gasket;

3.Ingress protection: IP66/IP67 optional.

Configuration:

1.According to the LED heat dissipation performance, the heating is conducted quickly through the luminaire structure to guarantee the LED luminous efficiency and life span;

2.Special U bracket design of luminaire to adjust the angle of lighting projection horizontally and Vertical, easy for installation.

GB: According to CQC (China Quality Certification Center) and EMC (Electromagnetic Compatibility) standard luminaires are designed strictly.

Optics:

Adopted 4in1 (RGBW) LED be able to create the best uniformity of full white light range of color temperature (such as 6000K,5000K,4000K,3000K,2200K and colors light (such as water blue, sky blue, light purple, light green, amber, water red), and it is also good to achieve much better pure white light and color mixing lighting effect.

Control: 16.7 million lighting effects of RGB color changing, achieve synchronization, chasing, flowing light effects, DMX512 compatible.

Application: Suitable for lighting of plaza, park, window sculpture, marked building, bridge, facade of building and landscape etc.

Luminaires shapeSquare
Glass materialart glass with diamond silver gray color、smooth
LED quantity9
LED color (single color)4 in 1 red green blue 4000k(RGBWN)、4-in-1 RGBWH 5000k
Power input36V DC
ControlDMX512 high-power
Installation
Cables outlet
Electricity Way直流
Way of connecting wiresSeries power cable,with waterproof connector1
Specification of LED350mA
Lamp length*
LED TypeCREE XML
