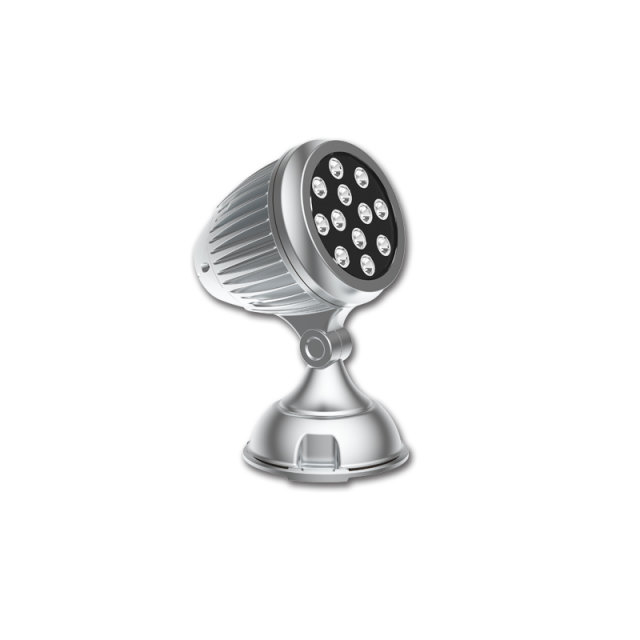

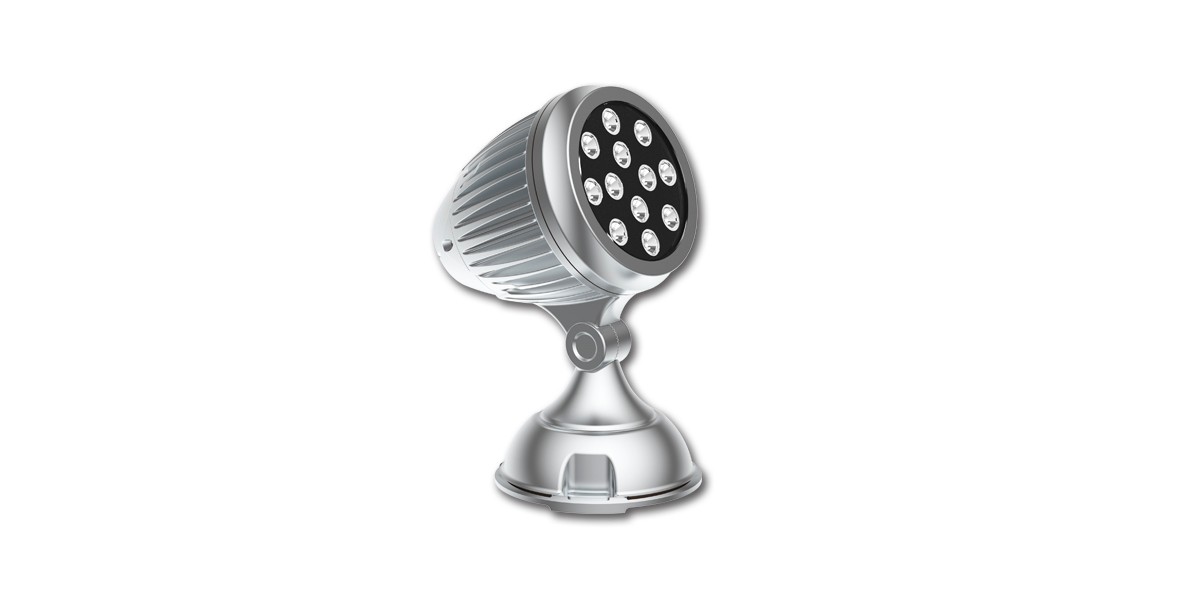

Middle power 4-in-1 luminaires F1212A1

Waterproof:

1.Adopt air filter device for preventing moisture condensation inside the luminaire.  balance the pressure difference between internal and external of luminaire;

2.Imported silicon rubber material is adopted for waterproof gasket;

3. Ingress protection IP66.

Configuration:

1.According to the LED heat dissipation performance, the heating is conducted quickly through the luminaire structure to guarantee the LED luminous efficiency and life span;

2.Toughened ultra-white glass,surface color is jasper black finish. Installation:Base is fixed by the screws, easy for installation.

Optics:

Adopted 4in1 (RGBW) LED be able to create the best uniformity of full white light range of color temperature (such as 6000K,5000K,4000K,3000K,2200K and colors light (such as water blue, sky blue, light purple, light green, amber, water red), and it is also good to achieve much better pure white light and color mixing lighting effect.

Control: 16.7 million lighting effects of RGB color changing, achieve synchronization, chasing, flowing light effects, DMX512 compatible.

Application:Suitable for landscape lighting of square, outdoor landscape, building facade, large building, theme park and entertainment areas etc.

Luminaires shapeRound
Glass materialJade black
LED quantity12
LED color (single color)4 in 1 red green blue 4000k(RGBWN)、4-in-1 RGBWH 5000k
Power input24V DC
ControlDMX512 high-power
Installation
Cables outlet
Electricity Way直流
Way of connecting wiresSeries power cable,with waterproof connector1
Specification of LED150mA
Lamp length*
LED TypeCREE -CL
