Waterproof:
1.Anti-negative pressure power cable to prevent water entering into the luminaire
2.Imported silicon rubber material is adopted for waterproof gasket;
3.Ingress protection IP68.
Configuration:
1.Pre- set mounting housing design to guarantee the safety, lead cable at the bottom of the pre- set mounting housing, easy to connection;
2.Borderless design of luminaire, seamless coupling between luminaire to luminaire;
3.6063 aluminum housing and pre-set mounting housing, 15mm thickness toughened pickling ultra-white glass;
Installation:Luminaire is fixed by clips, easy for installation.
Optical:
1.Luminous surface adopted 15mm thickness toughened pickling ultra-white glass+ light diffusion plate, to create luminous uniformity and soft light effect;
2.Borderless design of luminaire, seamless coupling between luminaire to luminaire, no dark area.
Control: 16.7 million lighting effects of RGB color changing, achieve synchronization, chasing, flowing light effects, DMX512 compatible.

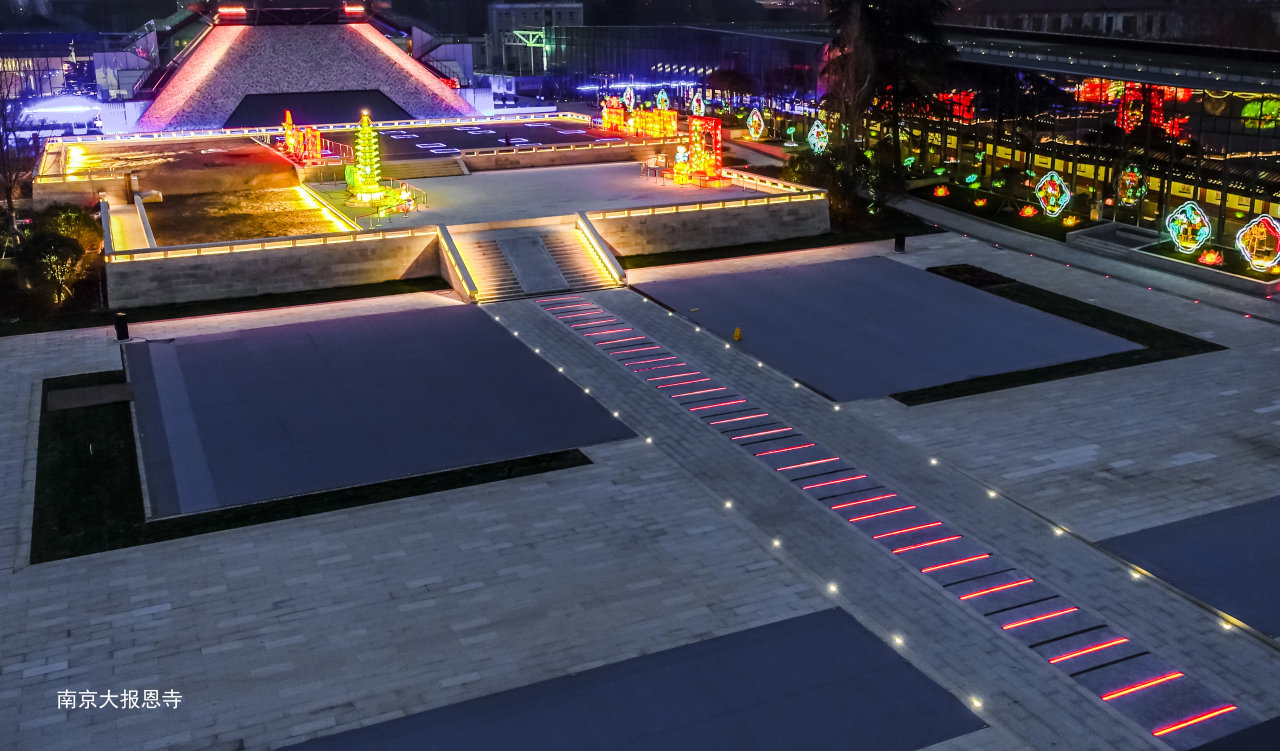

Application: Suitable for public place decorative lighting underwater such as square, park, pedestrian street, courtyard and road etc.
Luminaires shape | Strip |
---|---|
Glass material | frosted |
LED quantity | 18、30、60 |
LED color (single color) | |
Power input | 12V DC |
Control | DMX low-power update |
Installation | |
Cables outlet | |
Electricity Way | 直流 |
Way of connecting wires | Parallel power cable,no waterproof connector、Series power cable,no waterproof connector |
Specification of LED | 2835、20mA |

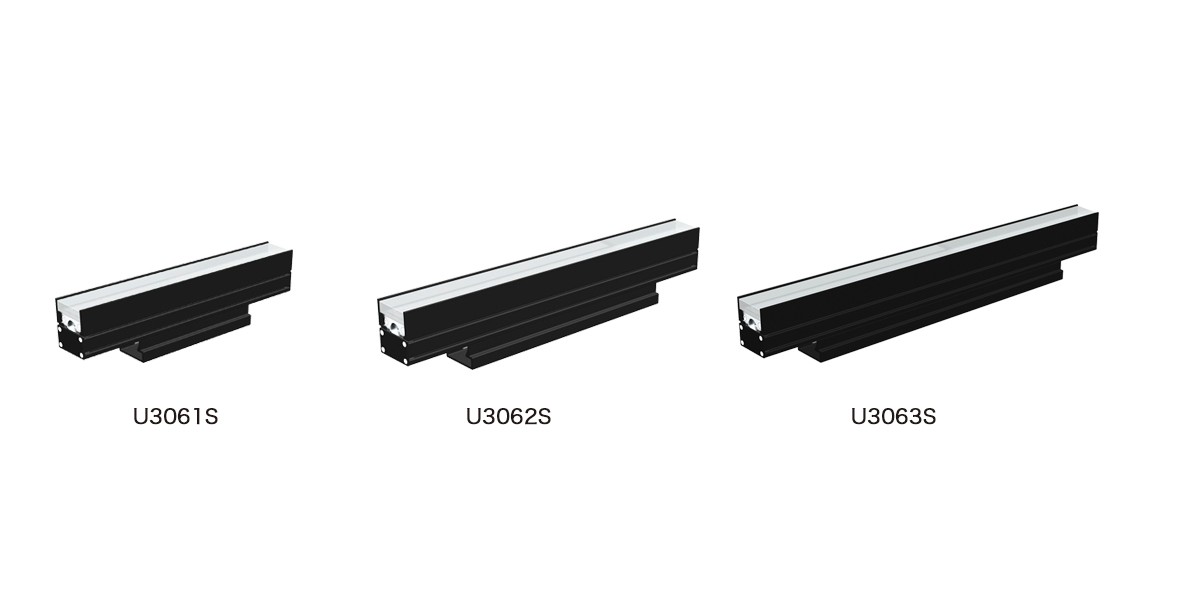

Lamp length | 300、500、1000 |
LED Type | OSRAM3 |
