Waterproof:
1.Imported silicon rubber material is adopted for waterproof gasket;
2.Adopt air filter device for preventing moisture condensation inside the luminaire.balance the pressure difference between internal and external of luminaire;
3.Ingress protection IP66.
Anti-static:Special electronic component and circuit against static(ESD)and surge has been adopted according to the standard of IEC61000-4(level 4).Max. (Peak Current)up to 3000 A(8/20μs)
Configuration:
1.Modular design, 3PCS LED of each module, easy for installation and maintenance;
2.Adopted waterproof junction box of IP66 grade at the bottom of the lighting poles, with the functions of overcurrent and short circuit protection of using fuse to guarantee the LED luminous efficiency and life span;
3.According to the LED heat dissipation performance, the heating is conducted quickly through the luminaire structure to guarantee the LED luminous efficiency and life span.
GB: According to CQC (China Quality Certification Center) and EMC (Electromagnetic Compatibility) standard luminaires are designed strictly.
Universal voltage:100~240VAC±10%.
The advantages are as followings:
1.It is applicable to input voltage of most countries and suitable to the areas of wide range voltage fluctuation,universal voltage is also good for the stability of LED brightness and life span.
2.It is not only good for cost saving and time saving to integrate LED driver and control system into light fitting,but also it is good for the overall reliability of LED products and control system.
Installation: Base fixed by the screws, easy for installation.
Optics:
1.Adopted asymmetrical reflector, photosynthesis 20 °, reasonable distribution and high light efficiency;
2.To create a comfortable lighting environment and to control the glare of light effectively.

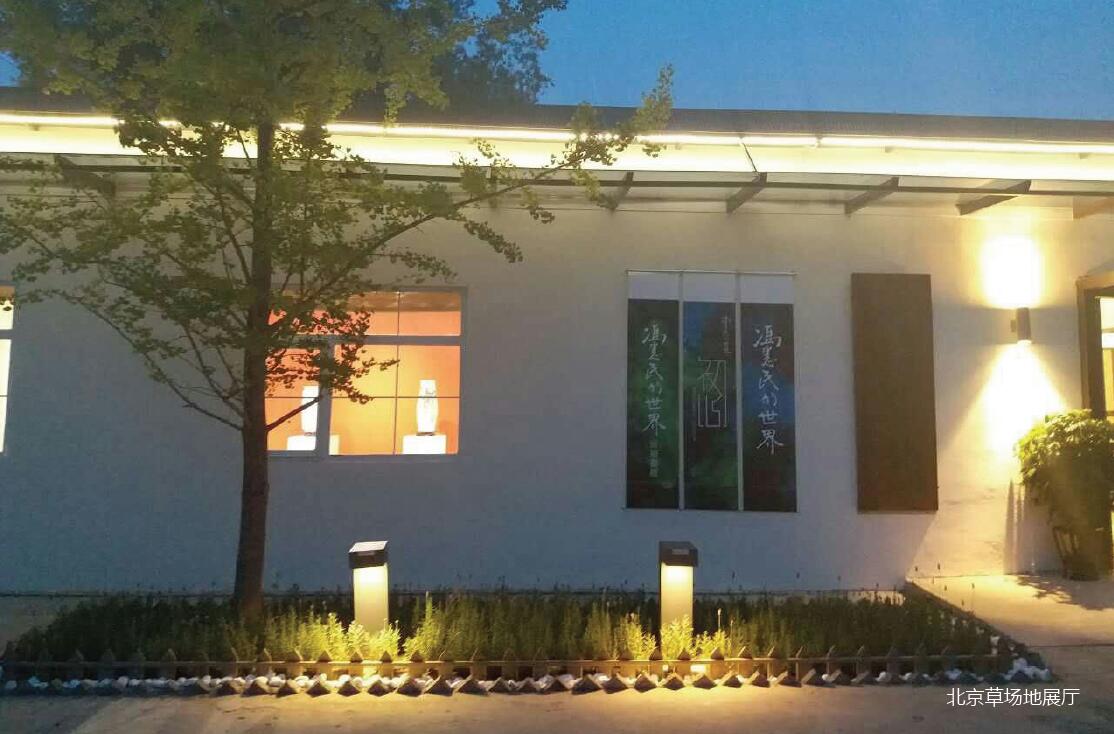

Application: Suitable for green lighting of decorative place such as square, garden villas, pedestrian street etc.

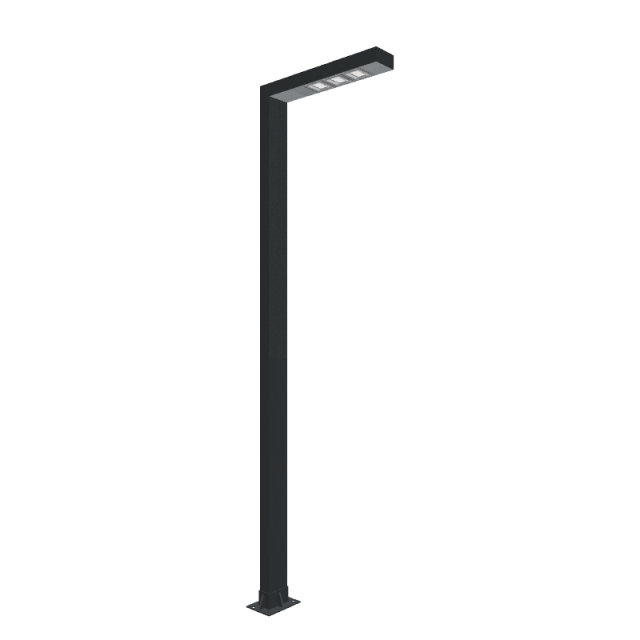

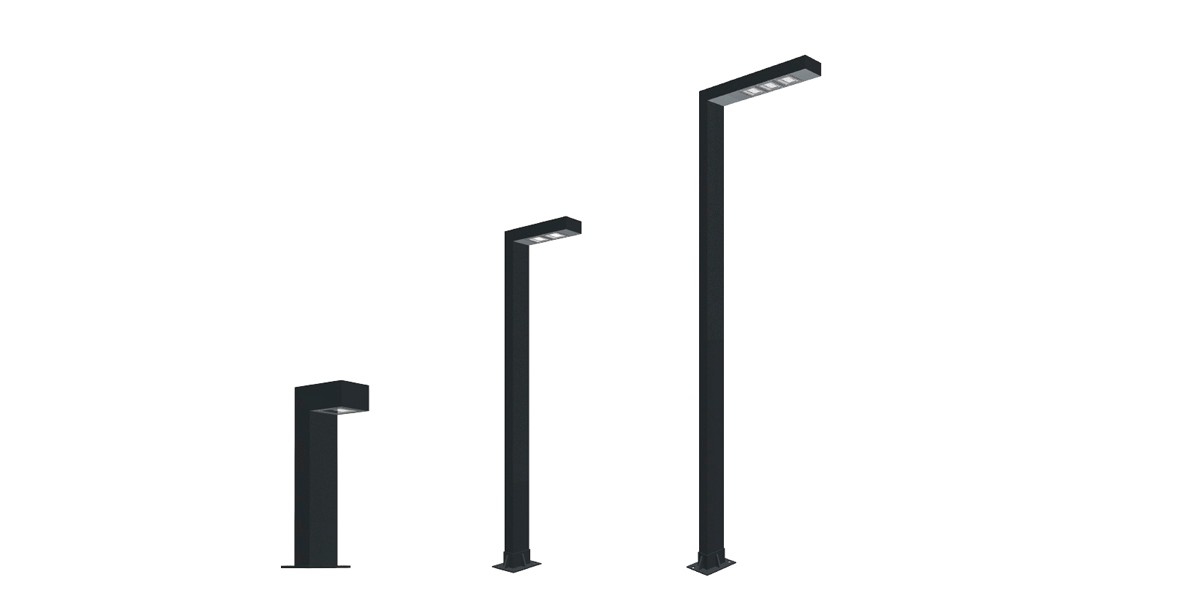

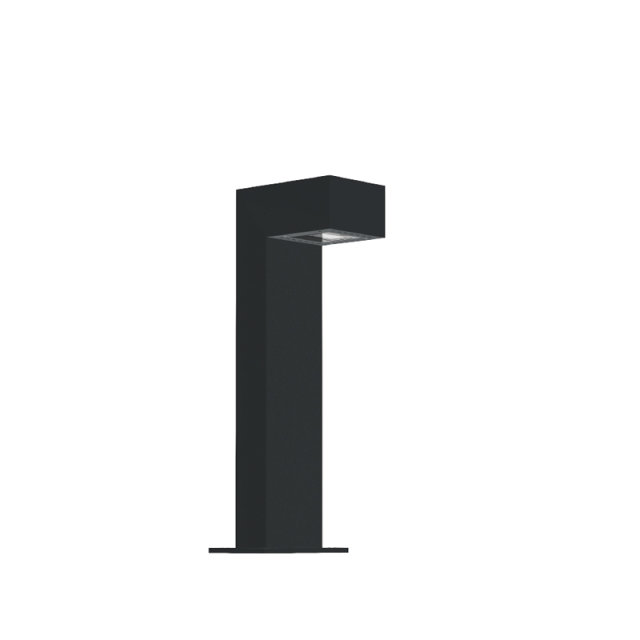

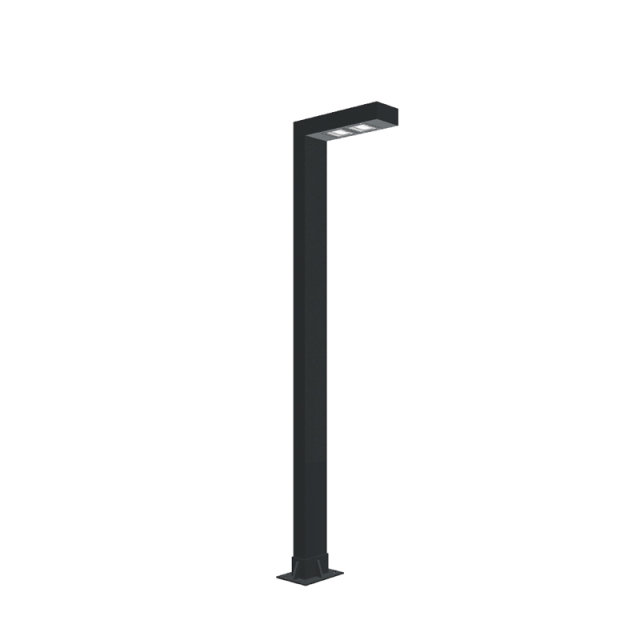

Luminaires shape | Strip |
---|---|
Glass material | art glass with diamond silver gray color |
LED quantity | 3、6、9 |
LED color (single color) | 5000k(WH)、4000k(WN)、2708-2735K、3011-3075K |
Power input | |
Control | |
Installation | |
Cables outlet | |
Electricity Way | 100~240V±10% |
Way of connecting wires | Parallel power cable,no waterproof connector |
Specification of LED | 350mA、500mA、700mA |
Lamp length | * |
LED Type | OSRAM1 |
